HP ProCurve series 2500 - Status Reporting Features; The Overview Window

4-16
Using the HP Web Browser Interface
Status Reporting Features
Using the HP Web Browser
Interface
Status Reporting Features
Browser elements covered in this section include:
■ The Overview window (below)
■ Port utilization and status (page )
■ The Alert log (page )
■ The Status bar (page )
The Overview Window
The Overview Window is the home screen for any entry into the web browser
interface.The following figure identifies the various parts of the screen.

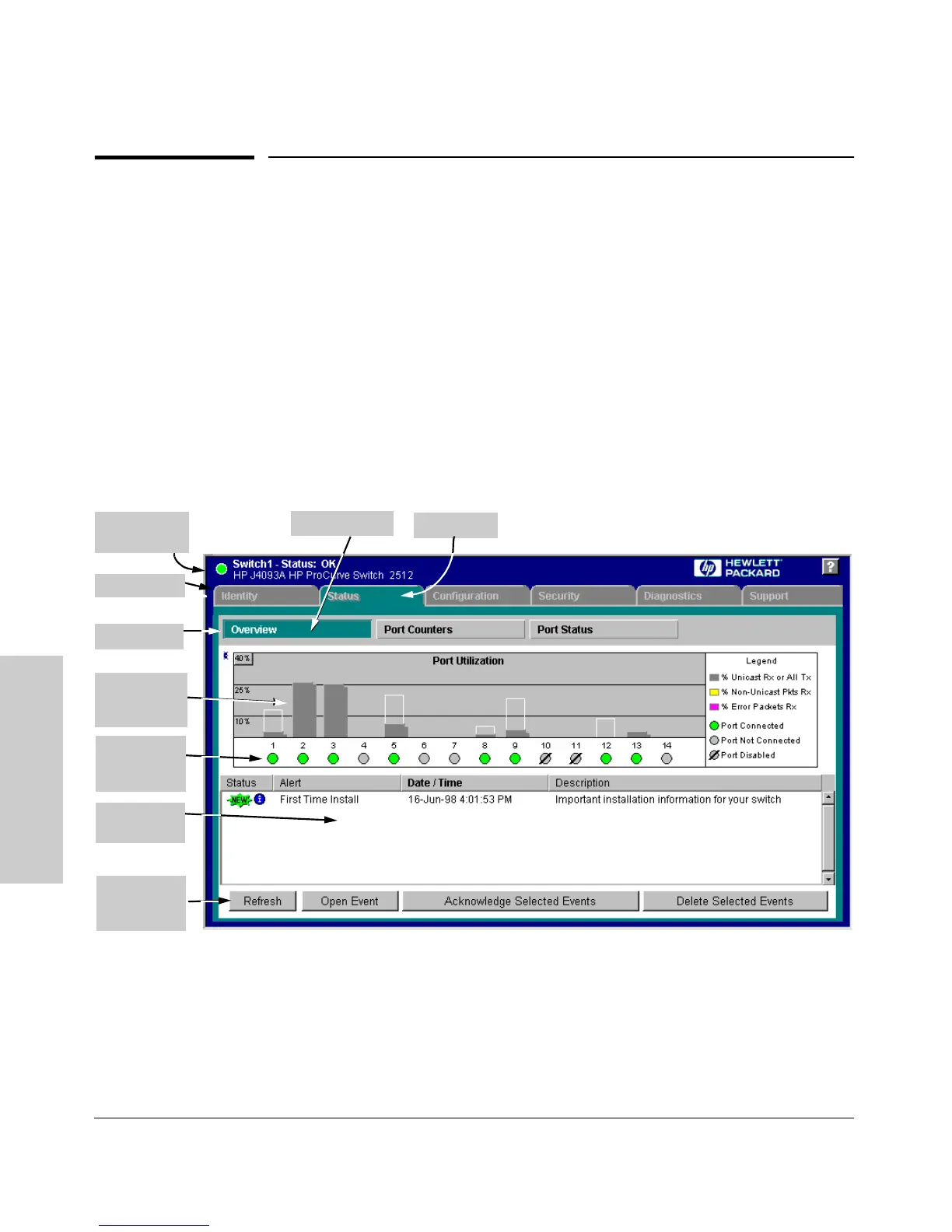

Figure 4-8. The Overview Window
Alert Log
Control Bar
Port Utiliza-
tion Graphs
(page 4-17)
Active Tab
Active Button
Alert Log
(page 4-20)
Port Status
Indicators
(page 4-19)
Button Bar
Tab Bar
Status Bar
(page 4-23)
