HP ProLiant DL580 Generation 3 - Front Panel Components

To Next Page

To Previous Page

10 HP ProLiant DL580 Generation 3 Server User Guide

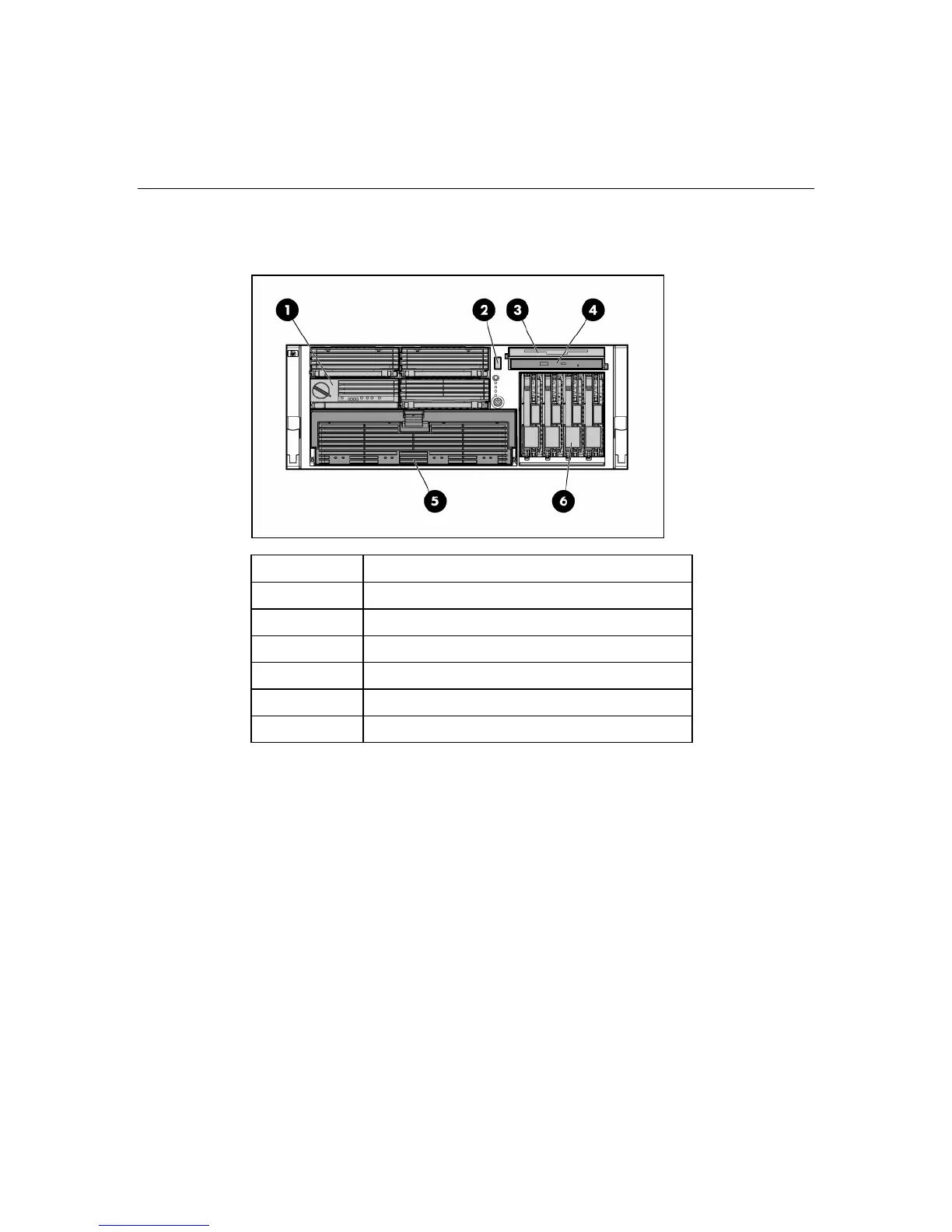

Front panel components

Item Description

1 Memory board or blank

2 USB port

3 Optional multibay drive or blank

4 DVD drive

5 Processor module

6 Hard drive bay
