26 HP ProLiant DL580 Generation 3 Server User Guide
Item Description Bank
3 DIMM slot 3 B
4 DIMM slot 4 B
SCSI IDs
The server supports single- or dual-channel hard drive configurations. The
single-channel configuration (simplex mode) supports up to four hard drives on
one channel. The dual-channel configuration (duplex mode) supports two hard
drives on each channel (SCSI IDs 0 and 1).
The SCSI IDs for both simplex mode and duplex mode are illustrated. Always
populate hard drive bays starting with the lowest SCSI ID.
NOTE: These SCSI ID designations apply regardless of the
controller or the configuration used.

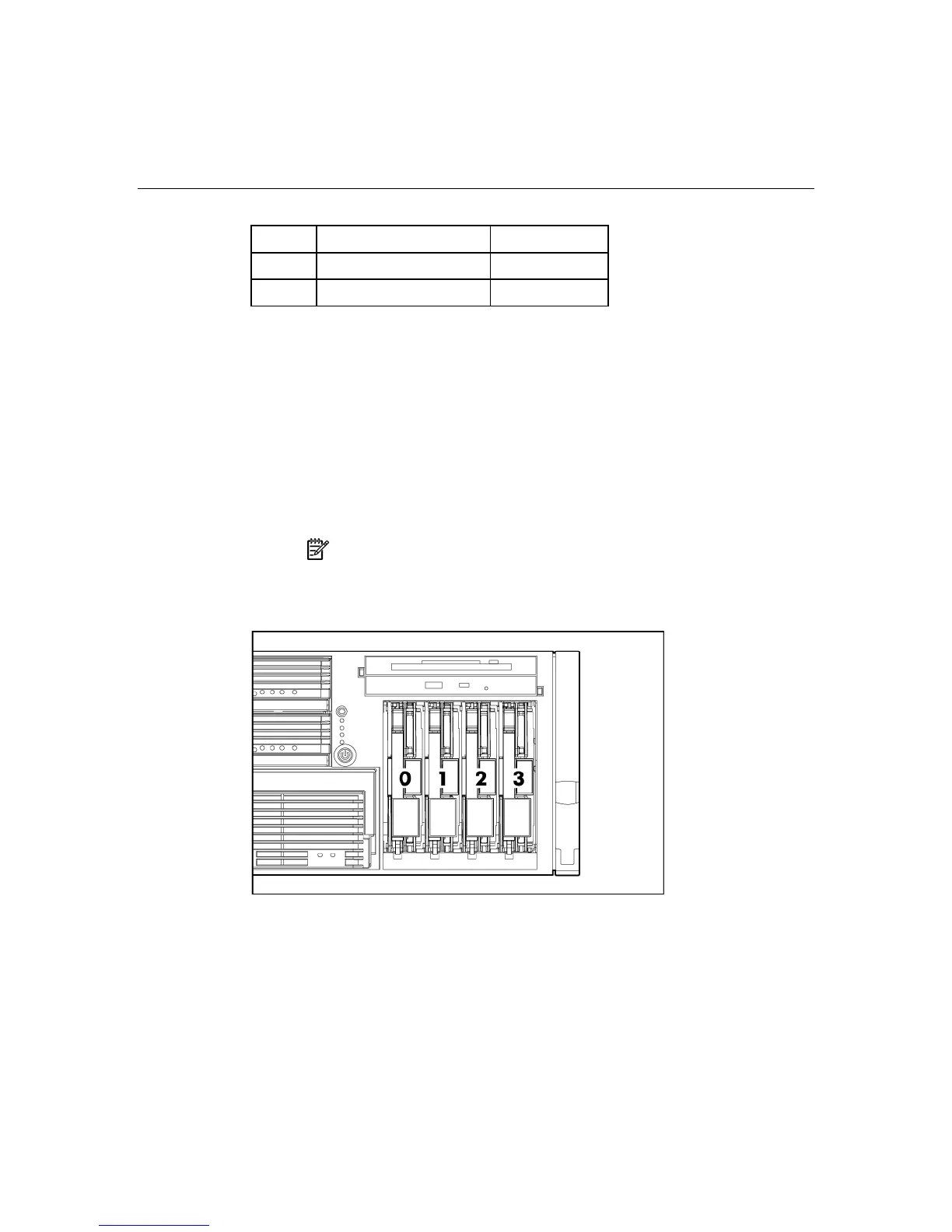

Simplex mode
