HP ProLiant DL580 Generation 3 - Rear Panel Components

16 HP ProLiant DL580 Generation 3 Server User Guide
PPM LED (1) Processor LED
(2)
External health
LED
Description
Off Amber Flashing red One or more of the following conditions exist:
• The processor was replaced and the LEDs
will clear after the next reboot
• Processor failed
Off Flashing amber Flashing red Processor configuration error detected
Amber Off Flashing red PPM failed
Flashing amber Off Flashing red One or more of the following conditions exist:
• PPM not installed
• PPM configuration error detected

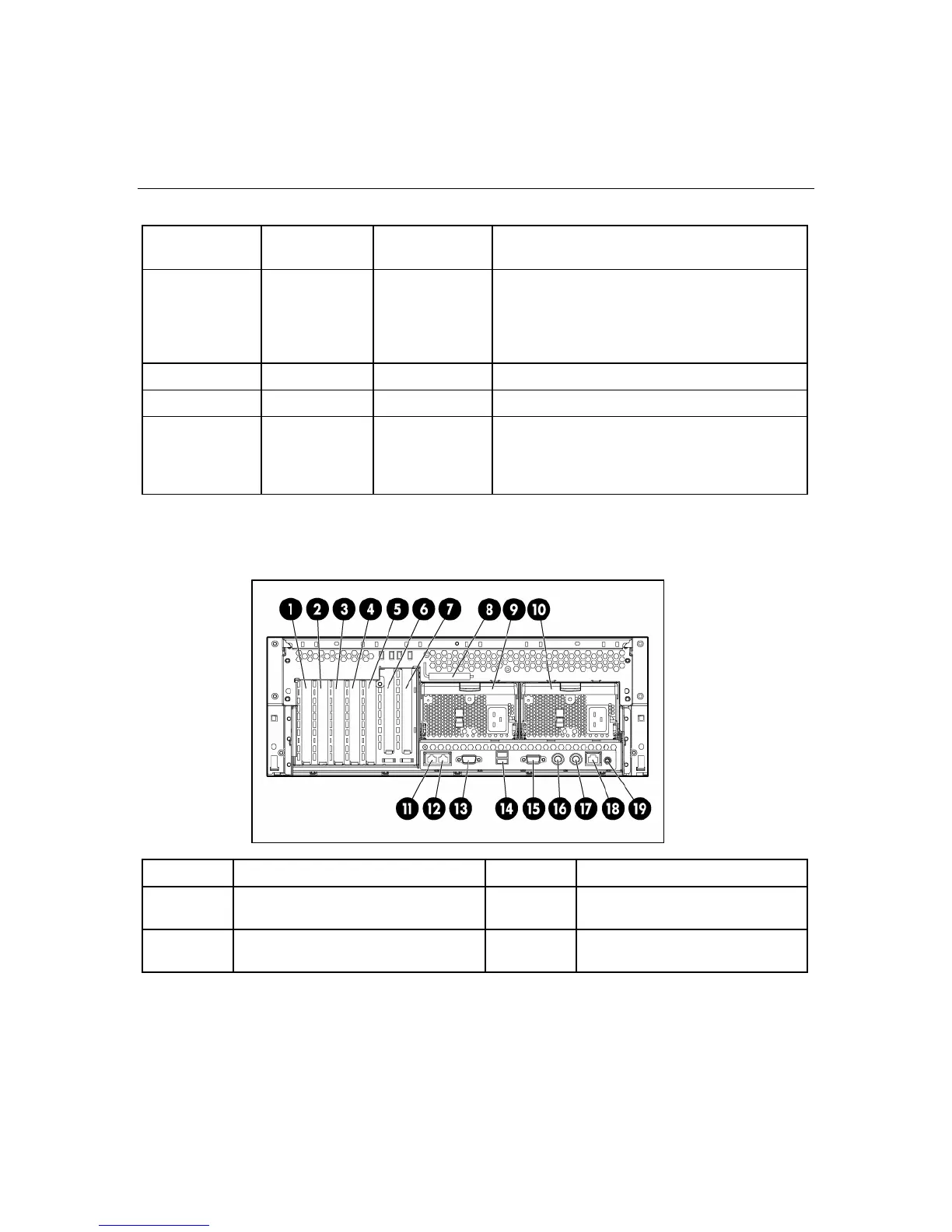

Rear panel components
Item Description Item Description
1 PCI-X non-hot-plug slot 7, 64-bit/100-
MHz
11 NIC port 2
2 PCI-X non-hot-plug slot 6, 64-bit/100-
MHz
12 NIC port 1
