78 HP ProLiant DL580 Generation 3 Server User Guide

NOTE: Only one mezzanine option can be installed in the server.

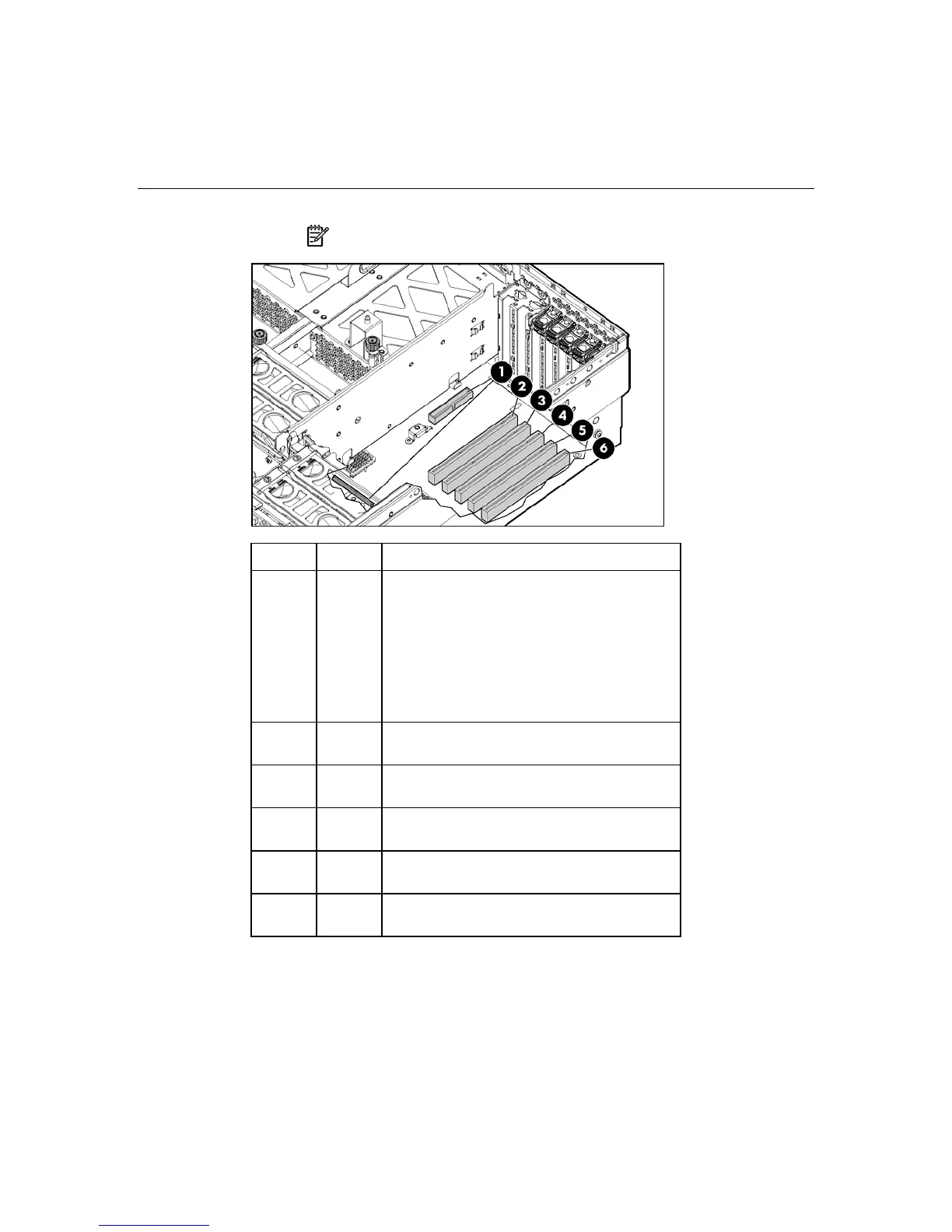

Item Slot Description

1 1–2 Connectors for one of the following:

• Optional PCI Express x4 mezzanine

board

• Optional PCI Express x8 mezzanine

board

• Optional PCI-X Hot Plug mezzanine

board

2 3 PCI-X non-hot-plug expansion slot, 64-

bit/133-MHz

3 4 PCI-X non-hot-plug expansion slot, 64-

bit/133-MHz

4 5 PCI-X non-hot-plug expansion slot, 64-

bit/133-MHz

5 6 PCI-X non-hot-plug expansion slot, 64-

bit/100-MHz

6 7 PCI-X non-hot-plug expansion slot, 64-

bit/100-MHz
