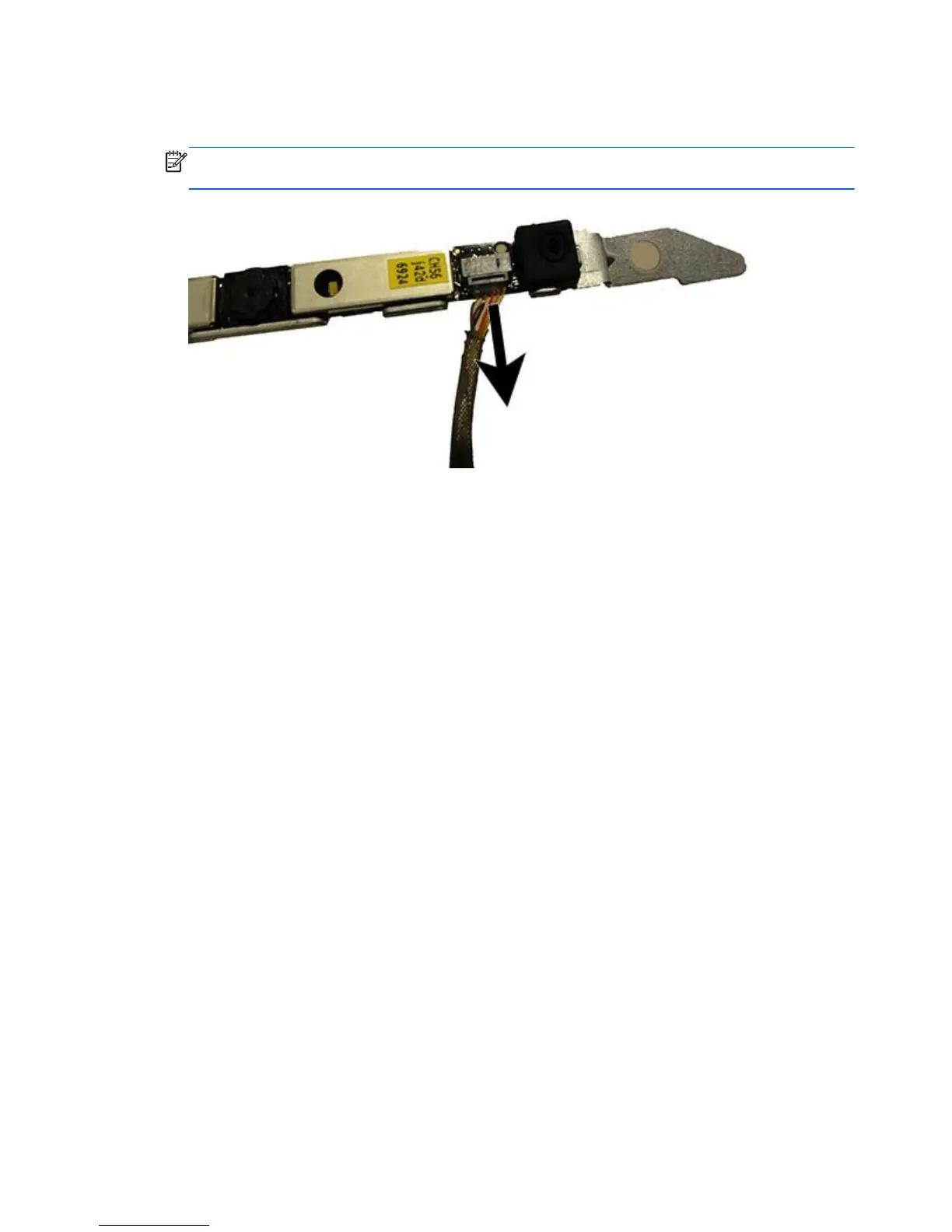

4. Rotate the assembly to gain access to the connector on the module, and then disconnect the cable
from the module.
NOTE: To avoid damaging the connector when disconnecting the cable, be sure to pull the
cable straight out of the connector at a vertical (90°) angle.
To install a webcam module, reverse the removal procedures.
44 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
