Converter board
The converter board is located on the left side of the computer (viewed from behind) under the main
rear cover. It is secured with two Torx screws and has two connectors.
Use the same converter spare part for all display panels; however, you must change jumper settings on
the board based on the display panel manufacturer.

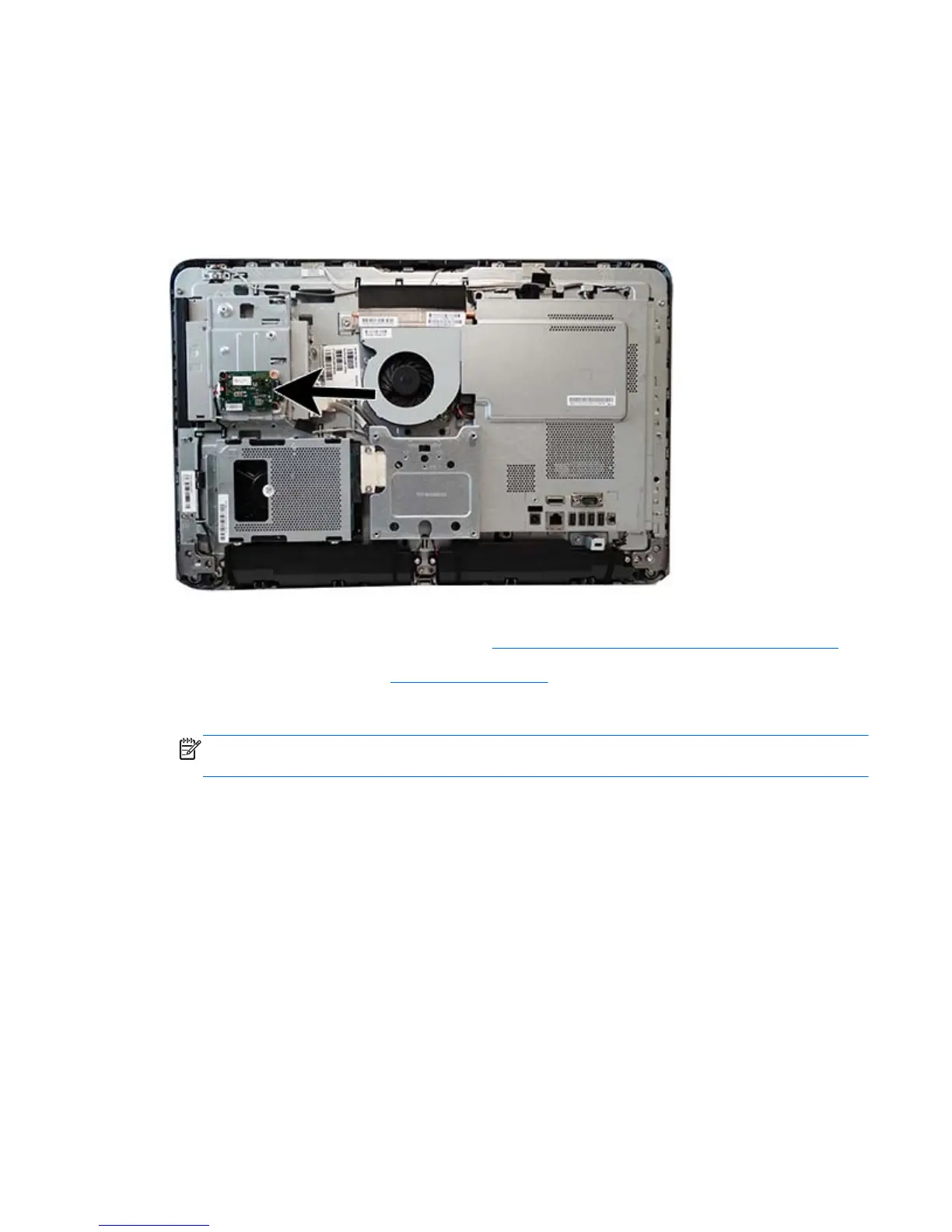

To remove the converter board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the rear cover (see
Rear cover on page 30).
3. Disconnect the two cables from the board (1).
NOTE: To avoid damaging the connector when disconnecting the cable, be sure to pull the
cable straight out of the connector at a vertical (90°) angle.
4. Remove the two black Torx screws (2) that secure the board to the computer.
Note the converter board jumper settings printed on the board. Be sure to correctly position the
jumpers on the converter board for the installed display panel.
5. Lift the converter board from the computer (3).
Converter board
53
