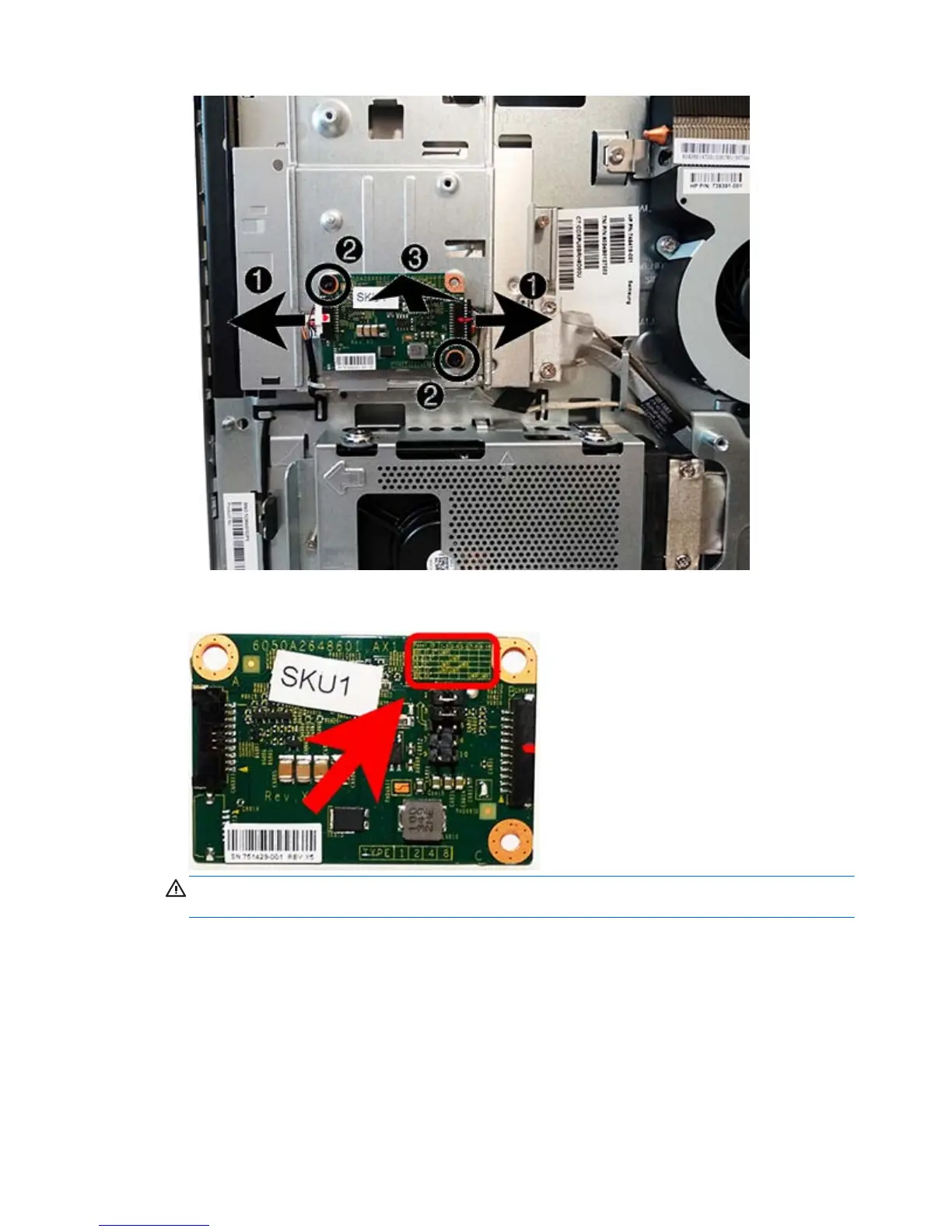

Be sure to correctly position the jumpers on the converter board based on the manufacturer of the
installed display panel. Jumper settings are printed on the converter board.
CAUTION: Incorrect jumper placement can result in damage to the converter board and display
panel.
Display panels are available from two manufacturers that require the following jumper placement.
●
SOC panel: pins (1)(2), (3)(4)
●
BOE panel: pins (7)(8), (9)(10)
To install the converter board, reverse the removal procedures.
54 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
