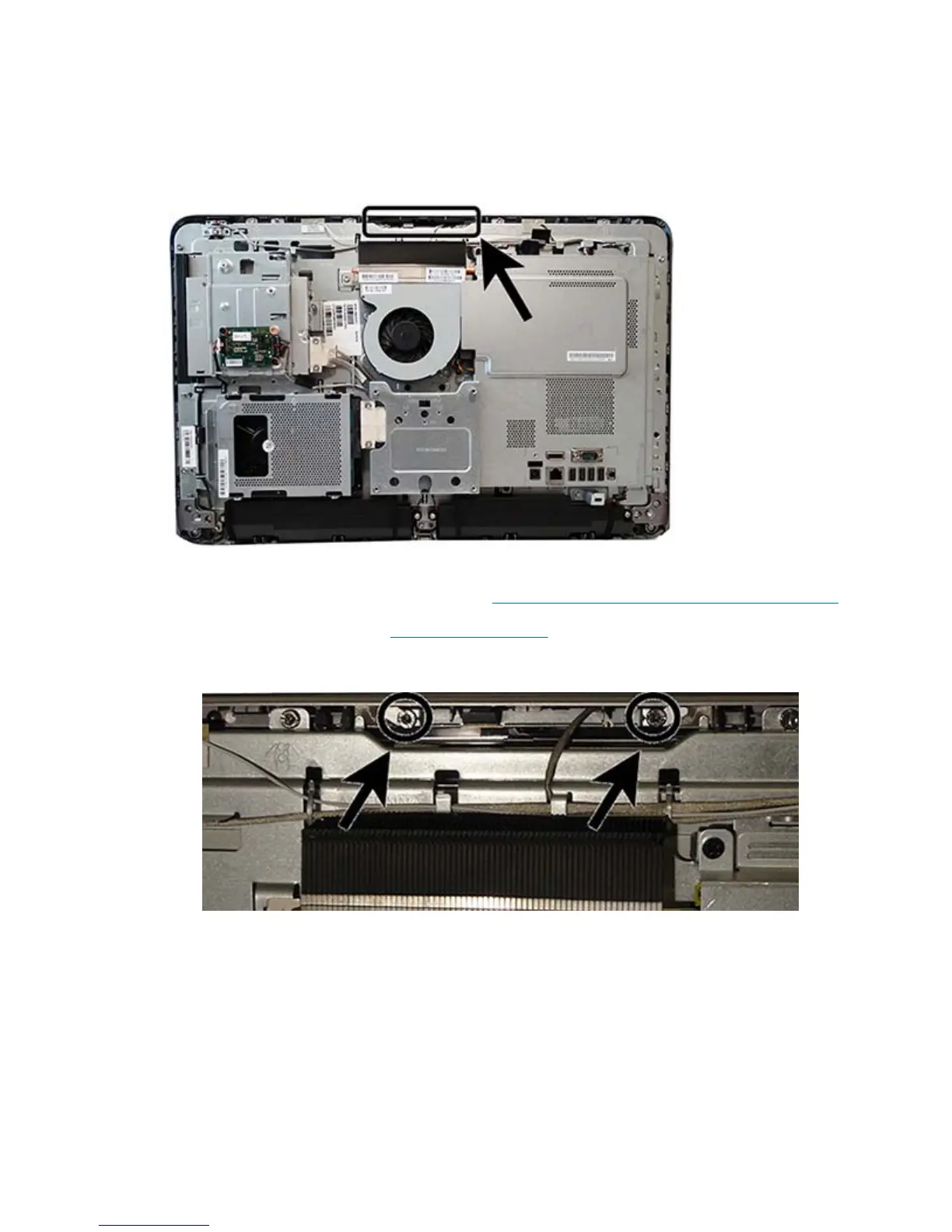

Webcam module
On products that ship with a webcam module, the module is located at the top of the computer. It is
secured with two Phillips screws and has one connector.
To remove the webcam module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 27).
2. Remove the rear cover (see
Rear cover on page 30).
3. Remove the two Torx screws that secure the webcam module to the computer.
Webcam module
43
