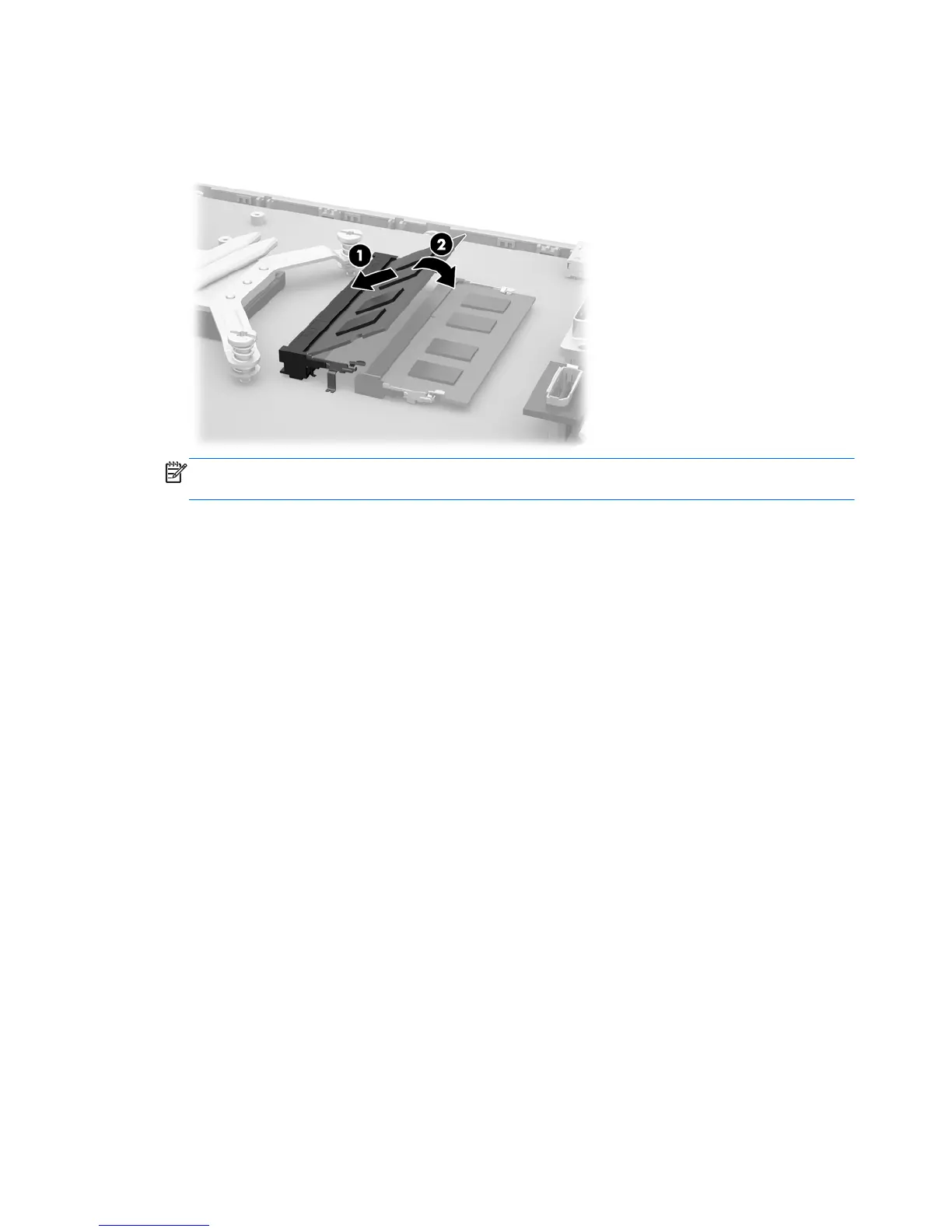

6. To install a memory module, slide the SODIMM into the socket at approximately a 30° angle (1),
then press the SODIMM down (2) so that the latches lock it in place.
NOTE: A memory module can be installed in only one way. Match the notch on the module with
the tab on the memory socket.
7. Reassemble the computer.
60 Chapter 5 Removal and Replacement Procedures All-in One (AIO) Chassis
