HP Server Console Switch G2 - Example of an HP Server Console Switch G2 Cascade Configuration

Cascading console switches 27

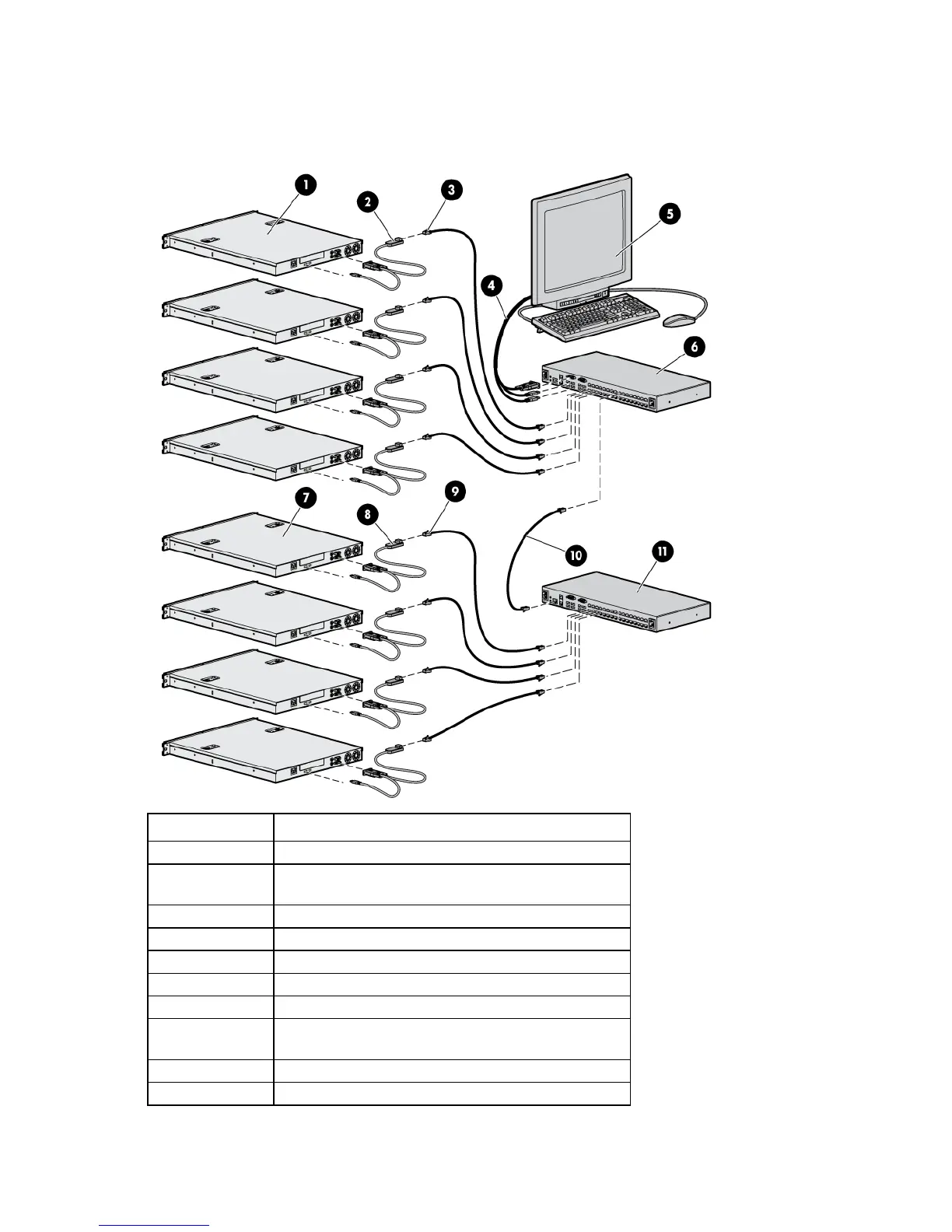

Example of an HP Server Console Switch G2 cascade
configuration
Item Description
1
Servers
2
Interface adapters (USB 2.0 interface adapter with Virtual
Media or PS2 interface adapter with Virtual Media)
3
UTP CAT5 cable
4
Local console KVM cables
5
Local console monitor
6
Primary console switch
7
Servers
8
Interface adapters (USB 2.0 interface adapter with Virtual
Media or PS2 interface adapter with Virtual Media)
9
UTP CAT5 cable
10
UTP CAT5 cable (tiering cable)
