Use of the bipod
HP provides a bipod for the Leica mini-prism, to act as a leveling device.

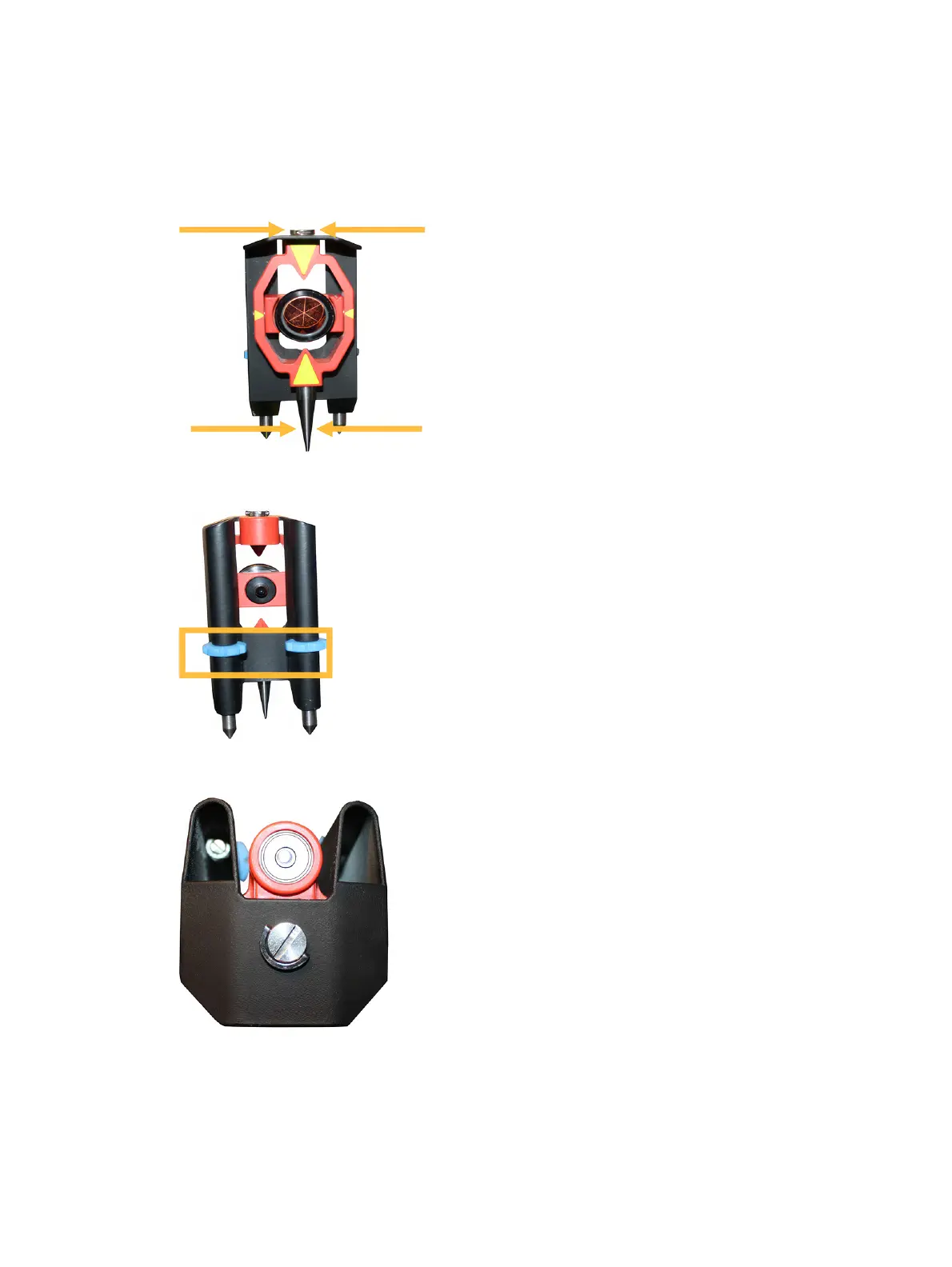

1. Mount the mini-prism onto the bipod as shown below, and install the mini-prism pointers onto the
mini-prism.
2. Set the bipod on the target points, and twist the blue leveling screws left or right to level it.
3. The leveling bubble and the mounting screw are on top.
Trimble radio module
How to set up this accessory.
64
Chapter 6 Peripherals and accessories
