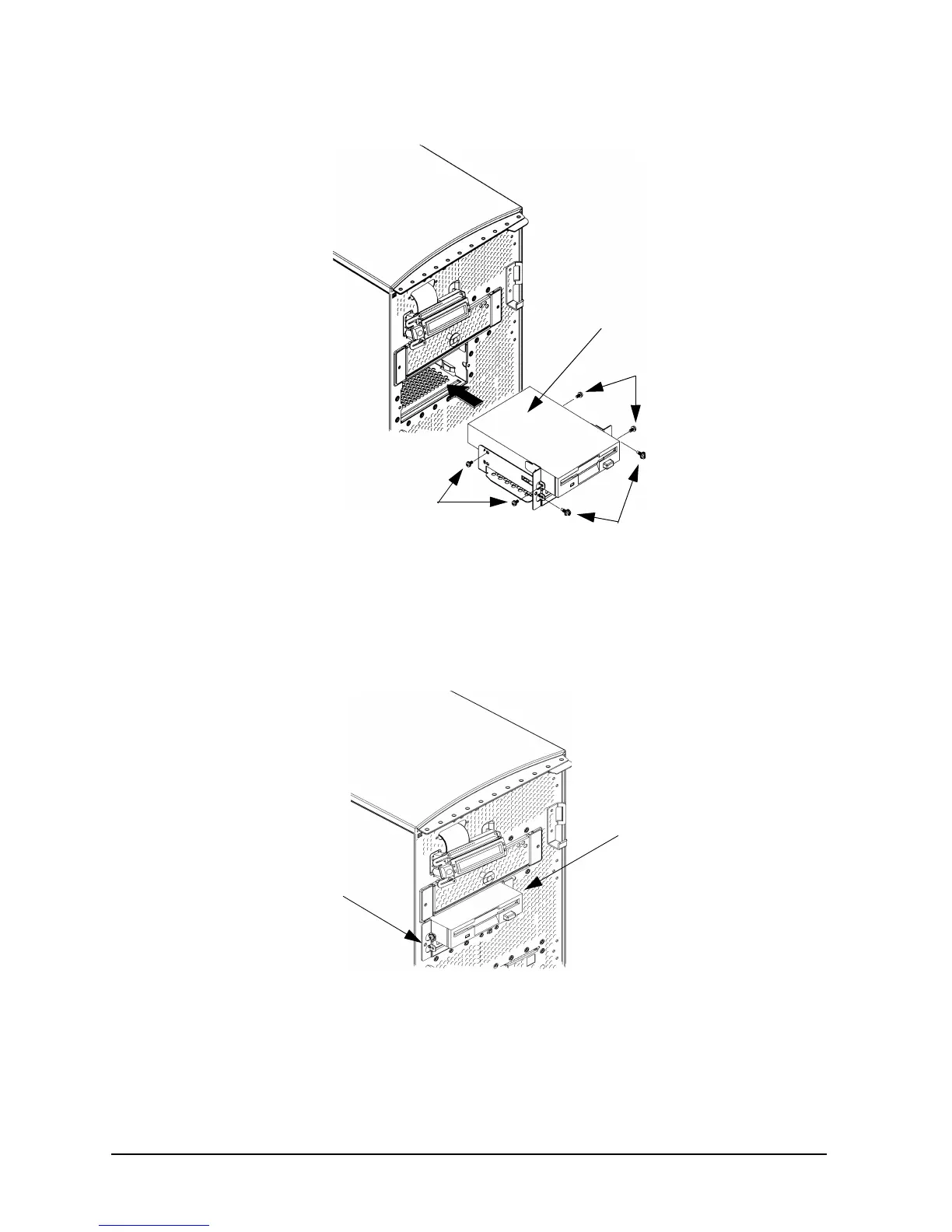

Figure 4-21. Installing the Floppy Disk Drive
7. Slide the floppy disk drive and its bracket into the workstation chassis as shown in
Figure 4-21.
8. Tighten the two floppy disk drive bracket screws as shown in Figure 4-22.
Figure 4-22. Tightening the Bracket Screws
Bracket Screws
Floppy Disk Drive
Mounting
Screws
Mounting
Screws
Bracket
Screw
Bracket
Screw
