Chapter 4 97
Field Replaceable Units
FRU Removal and Replacement

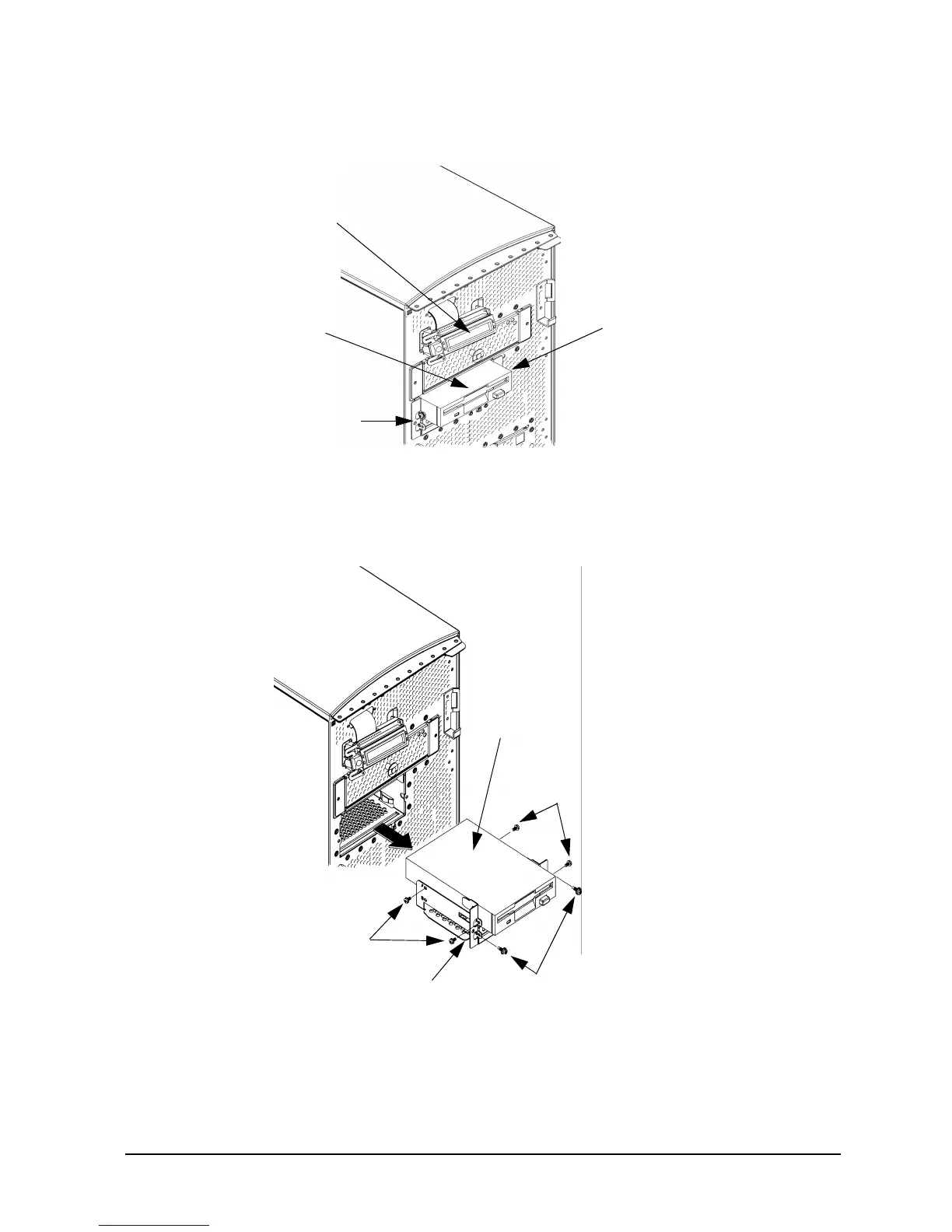

Figure 4-13. Front of Workstation with the Front Panel Removed
5. Remove both floppy disk drive bracket screws (T-15 Torx/slotted screws) and pull the
floppy disk drive out of the workstation chassis as shown in Figure 4-14.
Figure 4-14. Removing the Floppy Disk Drive
6. Remove the four floppy disk drive mounting screws (T-15 Torx/slotted screws) from the
sides of the floppy disk drive bracket as shown in Figure 4-14 and remove the floppy
disk drive from the bracket.
LCD
Bracket
Screw
(hidden)
Bracket Screw
Floppy
Disk Drive
Bracket Screws
Floppy Disk Drive
Mounting Screws
Floppy
Disk Drive
(T-15 Torx)
(T-15 Torx)
Floppy Disk Drive
Mounting Screws
(T-15 Torx)
Floppy Disk
Drive Bracket
To Next Page
