8.
Remove the screw (1) and slide front panel cable I/O assembly down, then out of the chassis (2),
as shown in the following figure.

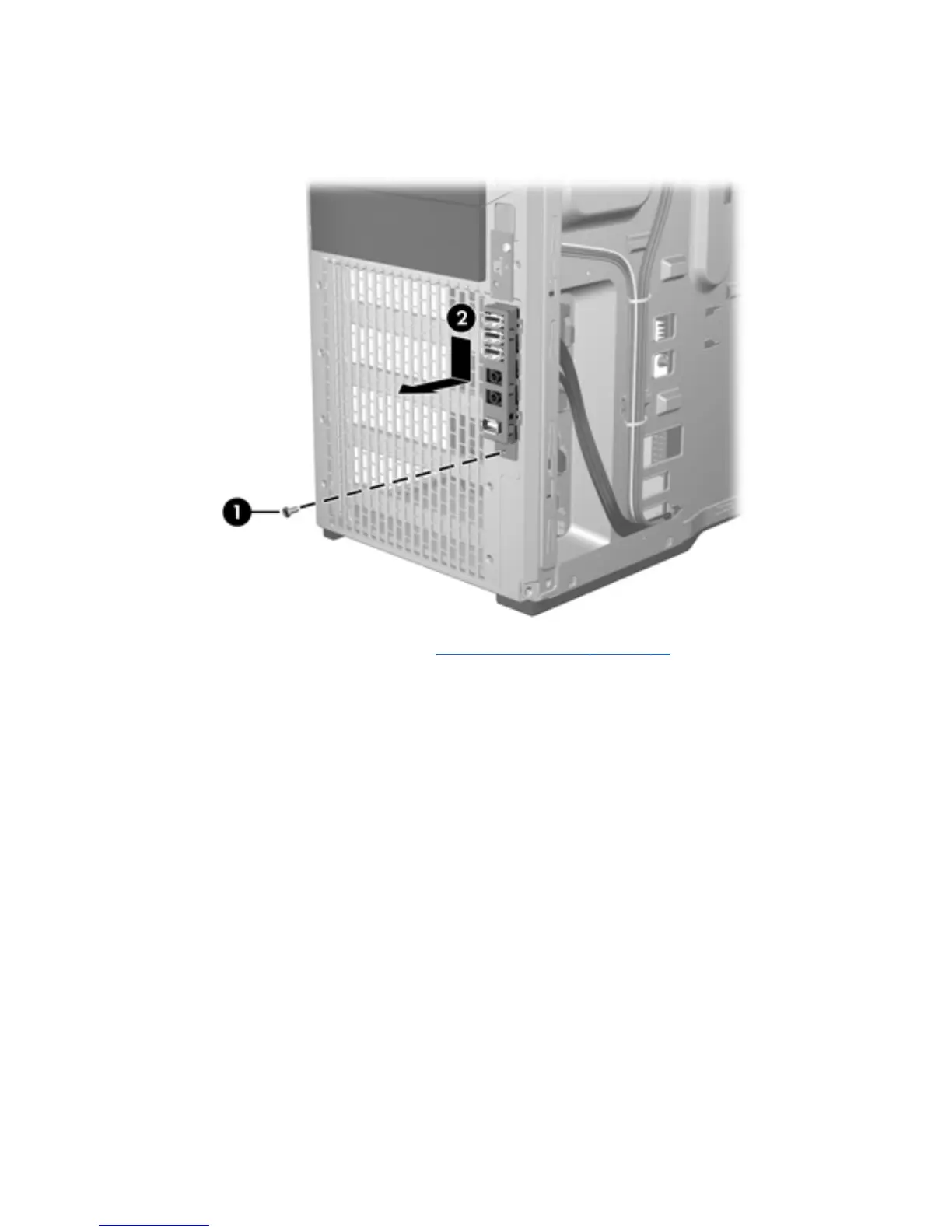

Figure 5-17 Removing the front panel I/O cable assembly
9.
Disconnect the speaker cable (see
Removing the speaker on page 87), and remove the tie wraps
that secure the front panel I/O cables to the chassis.
10.
Carefully guide the front panel I/O cable assembly from the chassis.
