Installing the rear system fan assembly
1.
With the power off and the chassis open for access, place the rear system fan assembly in the
chassis. Use a Torx T15 driver to secure the rear fan assembly in the chassis with four screws as
shown in the following figure.

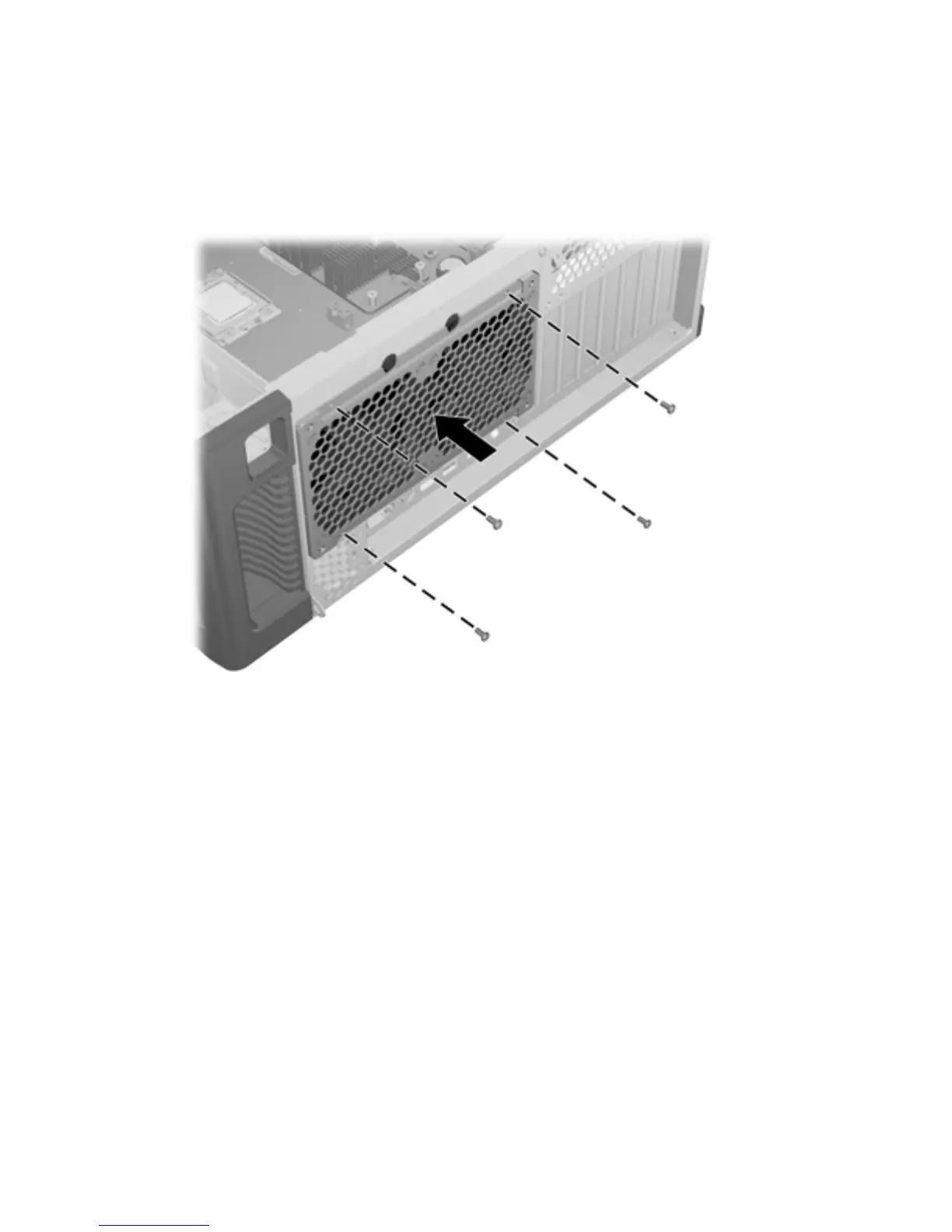

Figure 5-77 Installing the rear system fan assembly
148 Chapter 5 Replacing components ENWW
