HP Z800

Installing the airflow guide
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Insert the airflow guide tabs into the rear chassis slots (1), and then lower the airflow guide until it
clicks into place in the chassis (2), as shown in the following figure.

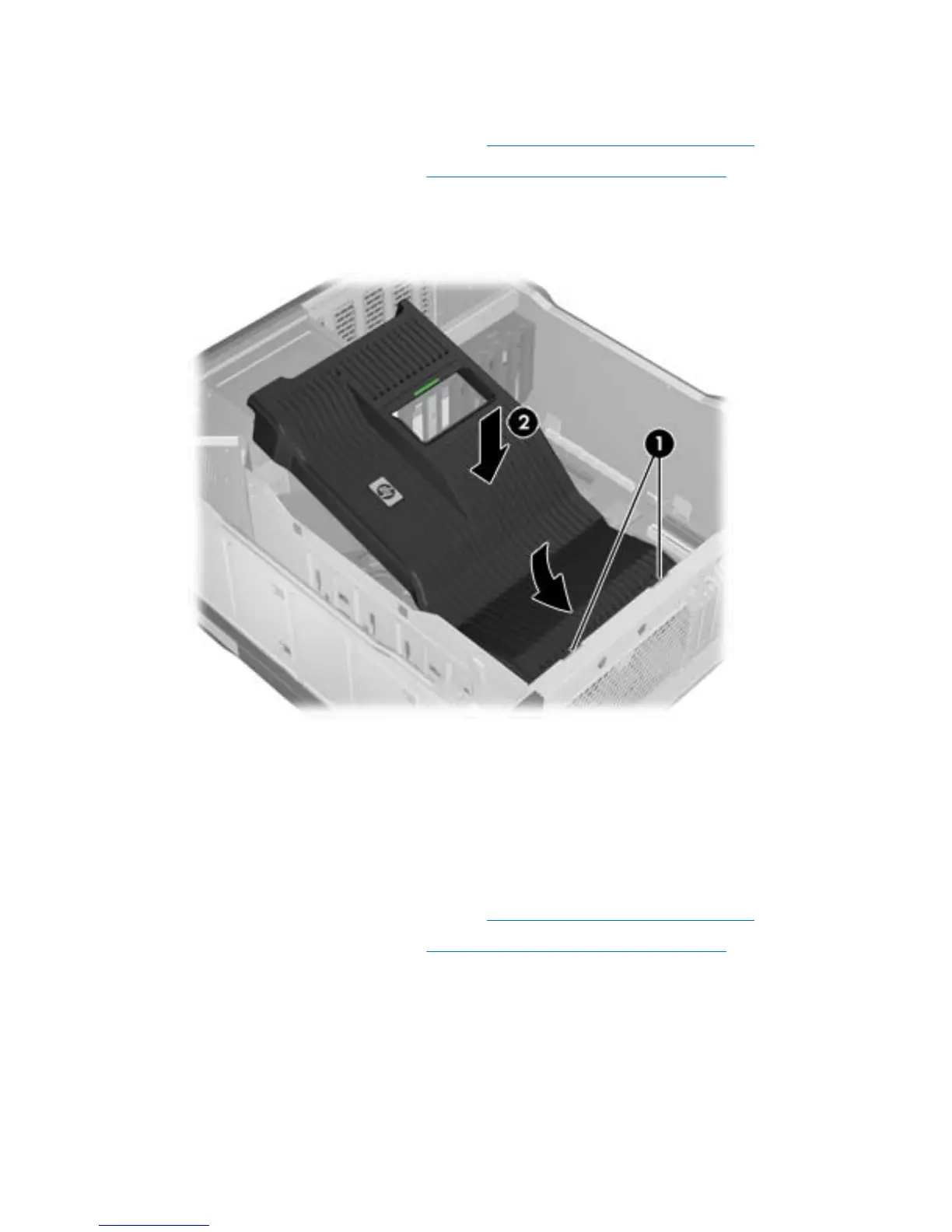

Figure 5-6 Installing the airflow guide
4.
Reinstall all removed components and reconnect any cables that have been disconnected.
Expansion card support
To prevent card movement during shipping, an expansion card support is installed. This section
describes how to remove and install the expansion card support.
Removing the expansion card support
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
82 Chapter 5 Replacing components ENWW
