2.
Connect the rear system fan assembly cable to the system board as shown in the following figure.

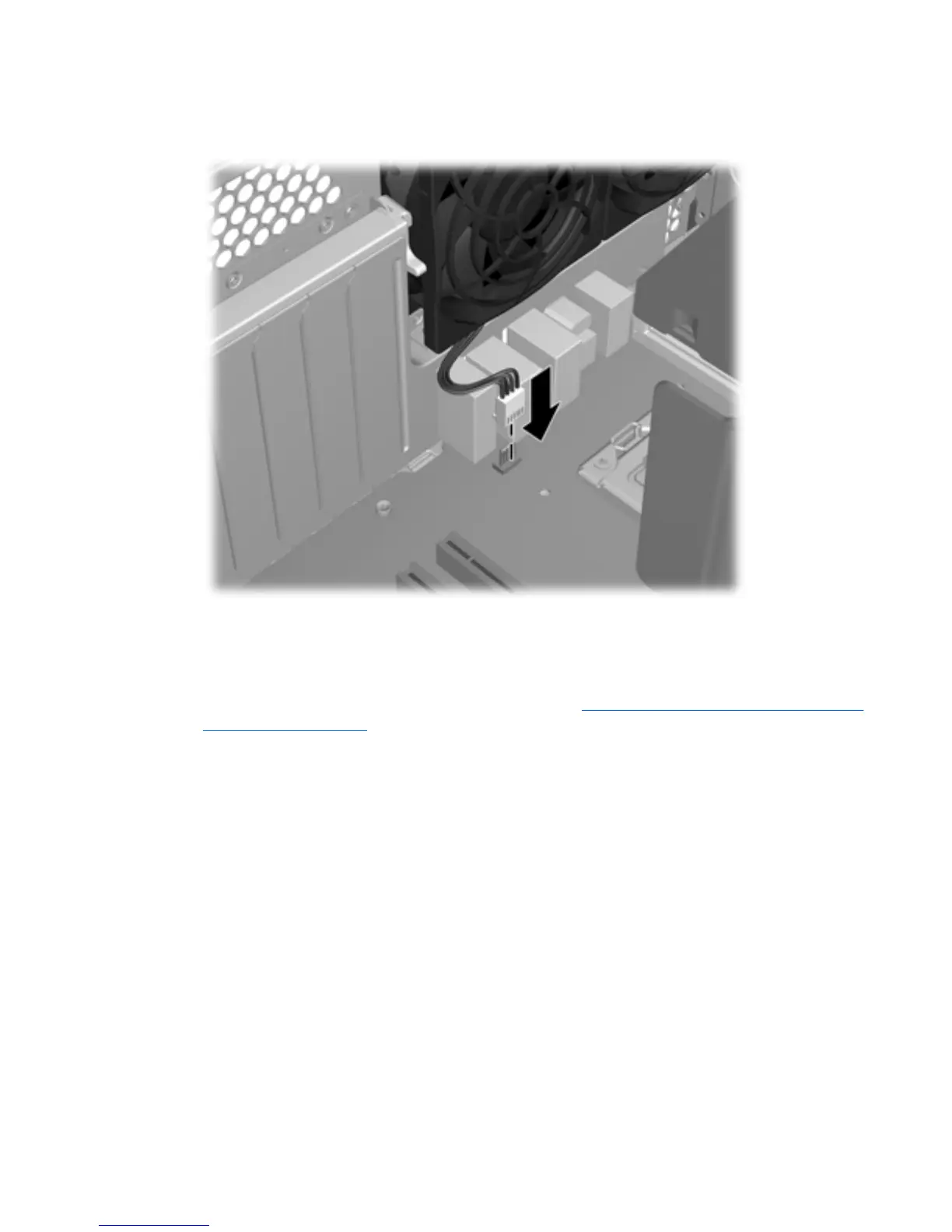

Figure 5-78 Connecting the rear system fan assembly cable
3.
Reassemble the workstation, and then replace the side access panel.
Installing a second front system fan
1.
Remove the expansion card guide/front fan holder (see
Removing the expansion card guide/front
fan holder on page 141).
ENWW
Removing and installing components
149
