Airflow guide
This section describes how to remove and install the chassis airflow guide.
Removing the airflow guide
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Remove the airflow guide by lifting firmly on the handle at the green touch point (1), and then
rotating the airflow guide upward (2), as shown in the following figure.

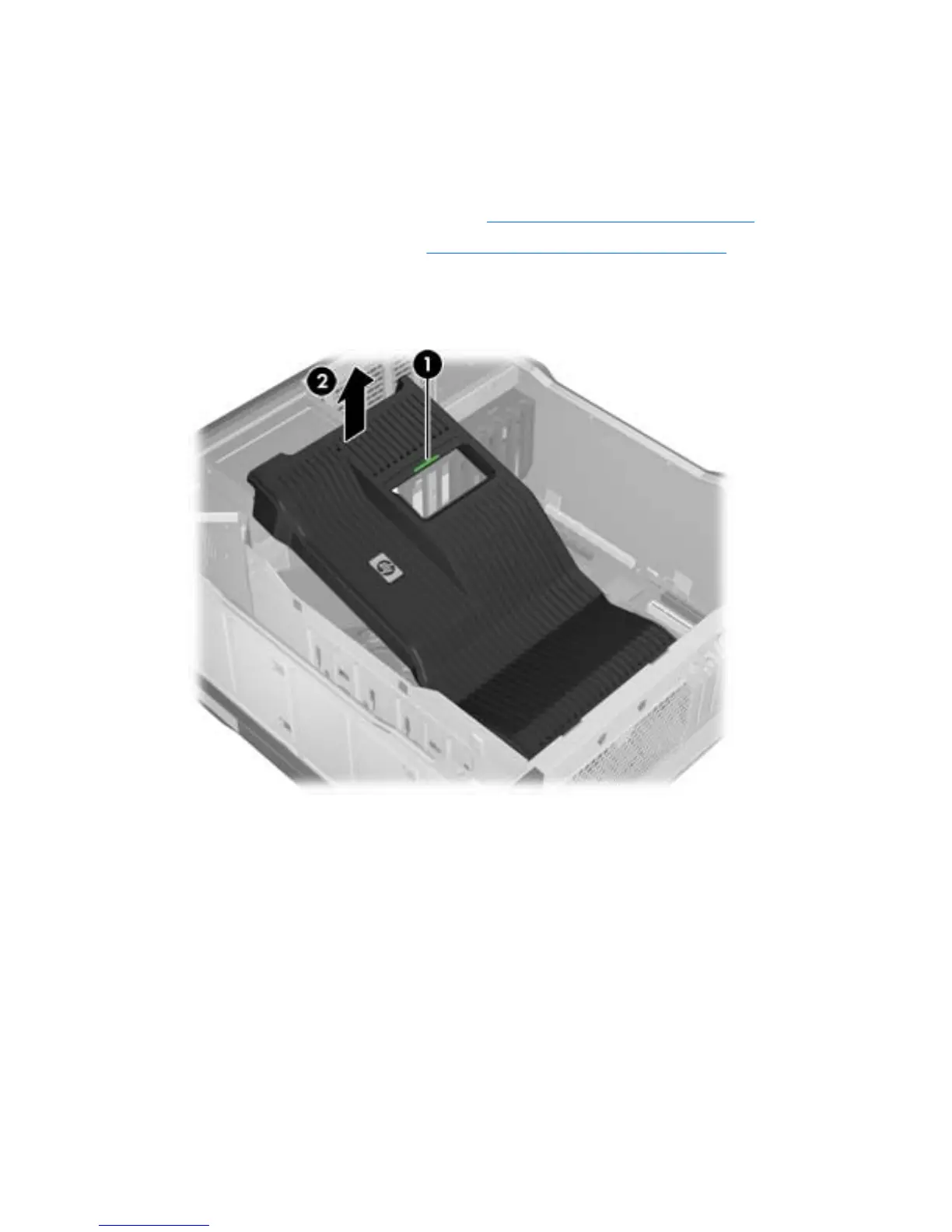

Figure 5-4 Releasing the airflow guide
80 Chapter 5 Replacing components ENWW
