4.
Disengage the airflow guide tabs from the rear chassis slots (1), and then lift the airflow guide
from the chassis (2), as shown in the following figure.

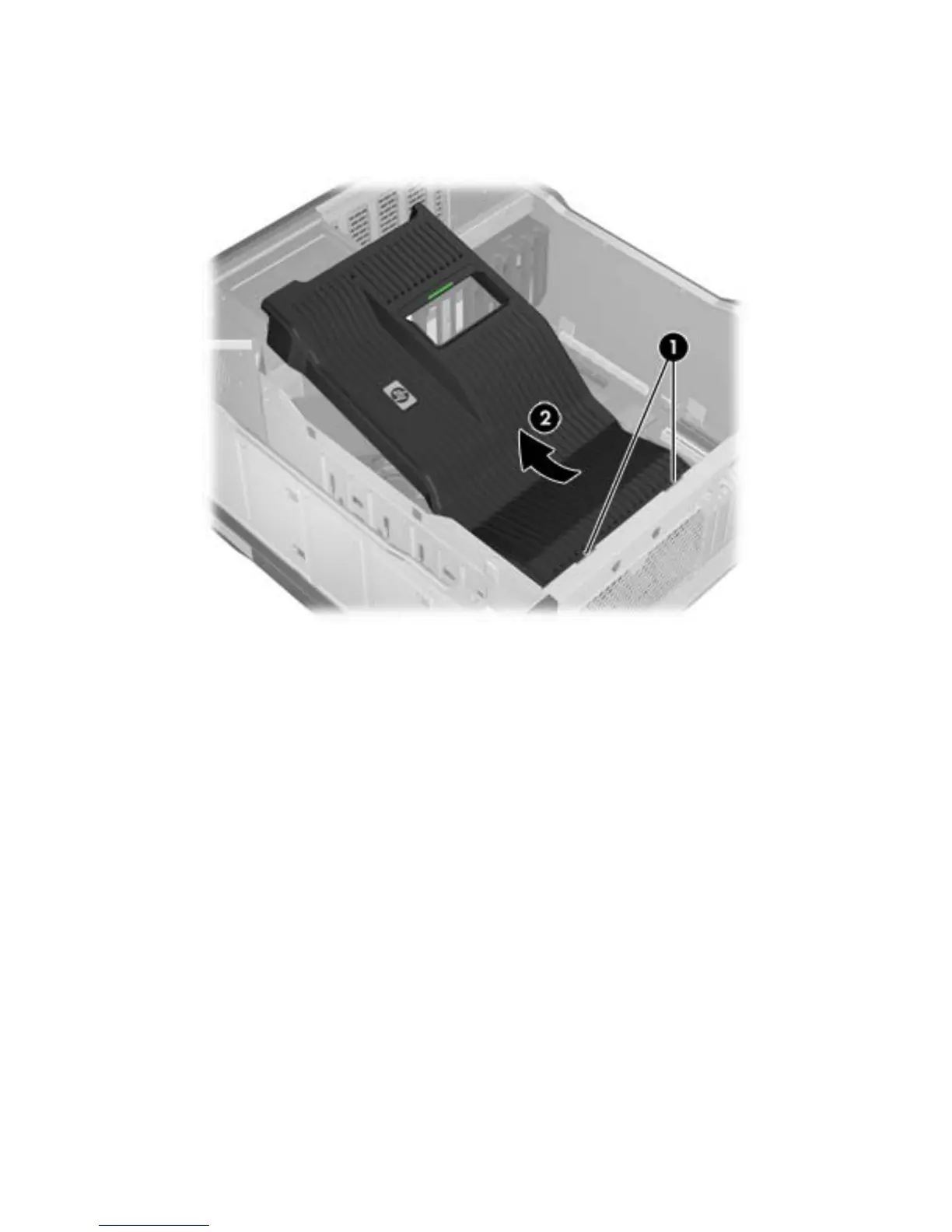

Figure 5-5 Removing the airflow guide
ENWW
Removing and installing components
81
