HP Z800

Chassis components

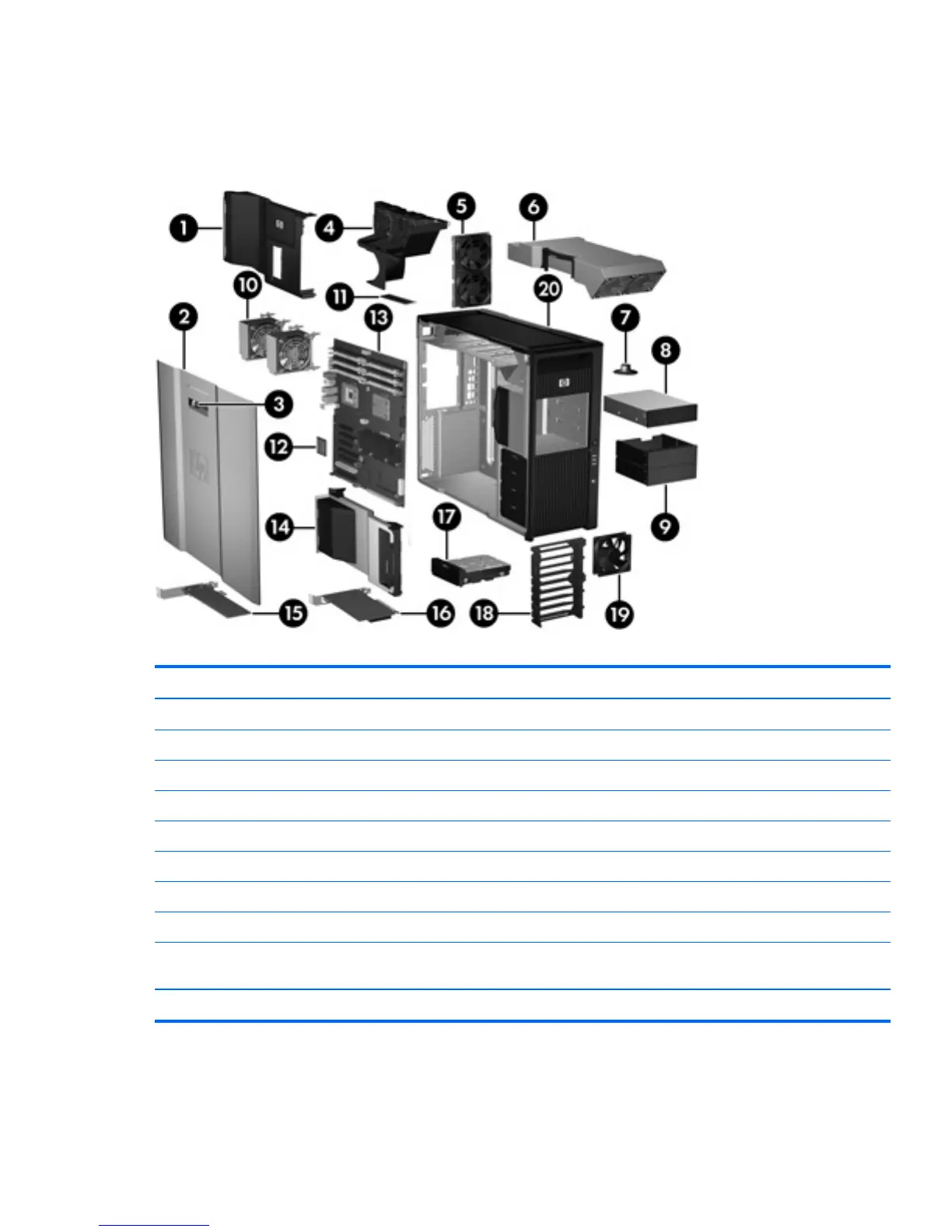

The following image shows a typical workstation configuration. Drive configurations can vary.
Figure 1-2 Workstation components
Table 1-1 Workstation component descriptions
Item Description Item Description
1 Airflow guide 11 Memory module (DIMM)
2 Side access panel 12 Processor (CPU)
3 Side access panel key lock 13 System board
4 Memory fans 14 Expansion card support
5 Rear system fans 15 PCIe/graphics card
6 Power supply 16 PCI card
7 Speaker 17 Hard disk drive
8 Optical drive 18 Expansion card guide/system board retainer/front system fan holder
9 Optical bay fillers (optional or other
devices)
19 Front system fan
*
10 Processor (CPU) heatsinks 20 Chassis
*
Two fans installed in 1110W power supply version.
4 Chapter 1 Workstation overview ENWW
