Rear panel components
The following illustration shows the rear panel of a typical workstation configuration. Drive
configurations can vary.

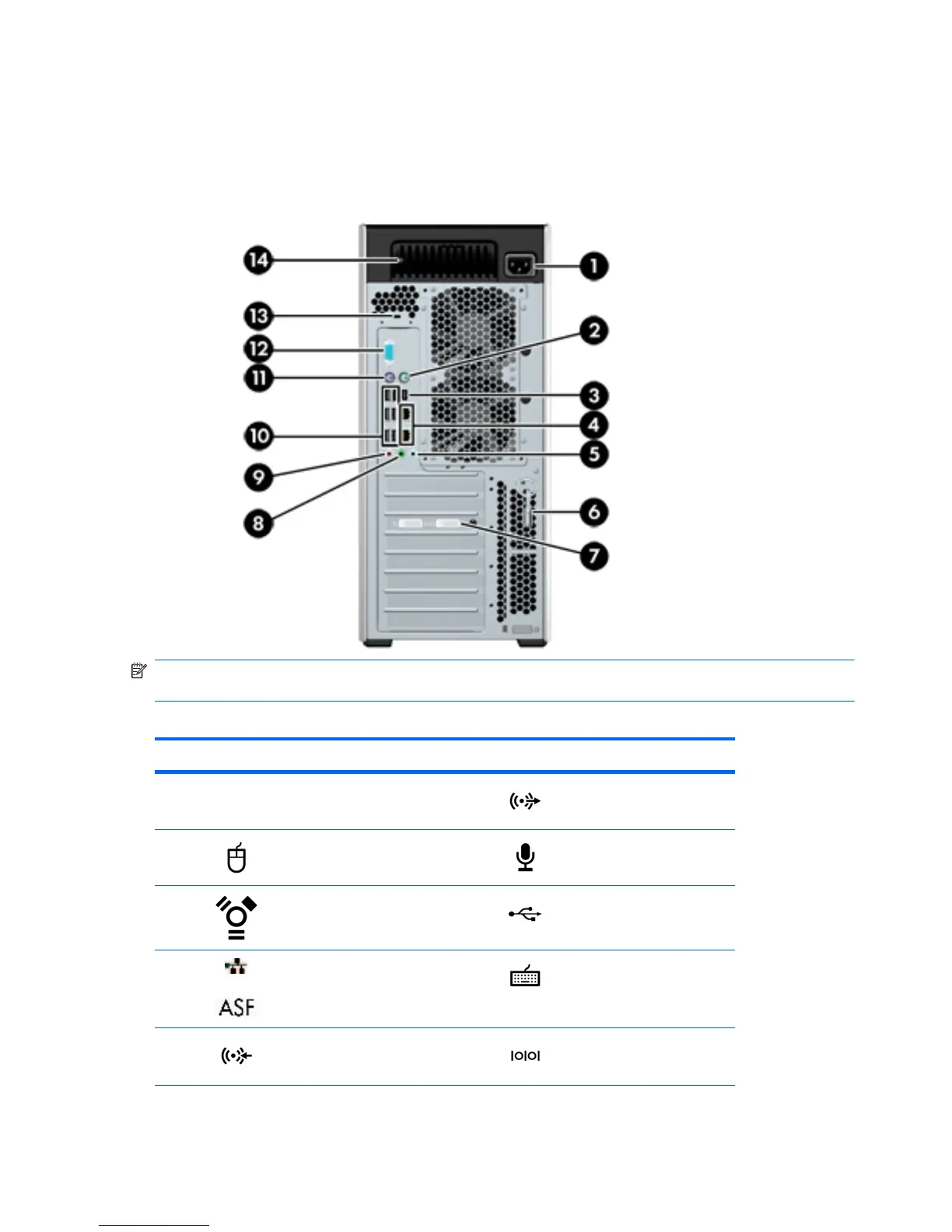

Figure 1-4 Rear panel
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to assist in
connecting peripheral devices.
Table 1-3 Rear panel components
Item Symbol Description Item Symbol Description
1 Power cord connector 8
Audio line-out connector
(green)
2
PS2/mouse connector (green) 9 Microphone connector (pink)
3
IEEE-1394 connector 10 USB connectors (6)
4
RJ-45 network connectors (2)
(Bottom connector is ASF.)
11 PS/2 keyboard connector
(purple)
5
Audio line-in connector (blue) 12 Serial connector
6 Chapter 1 Workstation overview ENWW
