Optical disk drive
This section describes how to remove and install an optical disk drive.
Removing an optical disk drive from the optical drive bay
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Remove the airflow guide (see
Removing the airflow guide on page 80).
4.
Remove the expansion card support (see
Removing the expansion card support on page 82).
5.
Disconnect the power (1) and data (2) cables from the optical disk drive, as shown in the
following figure.

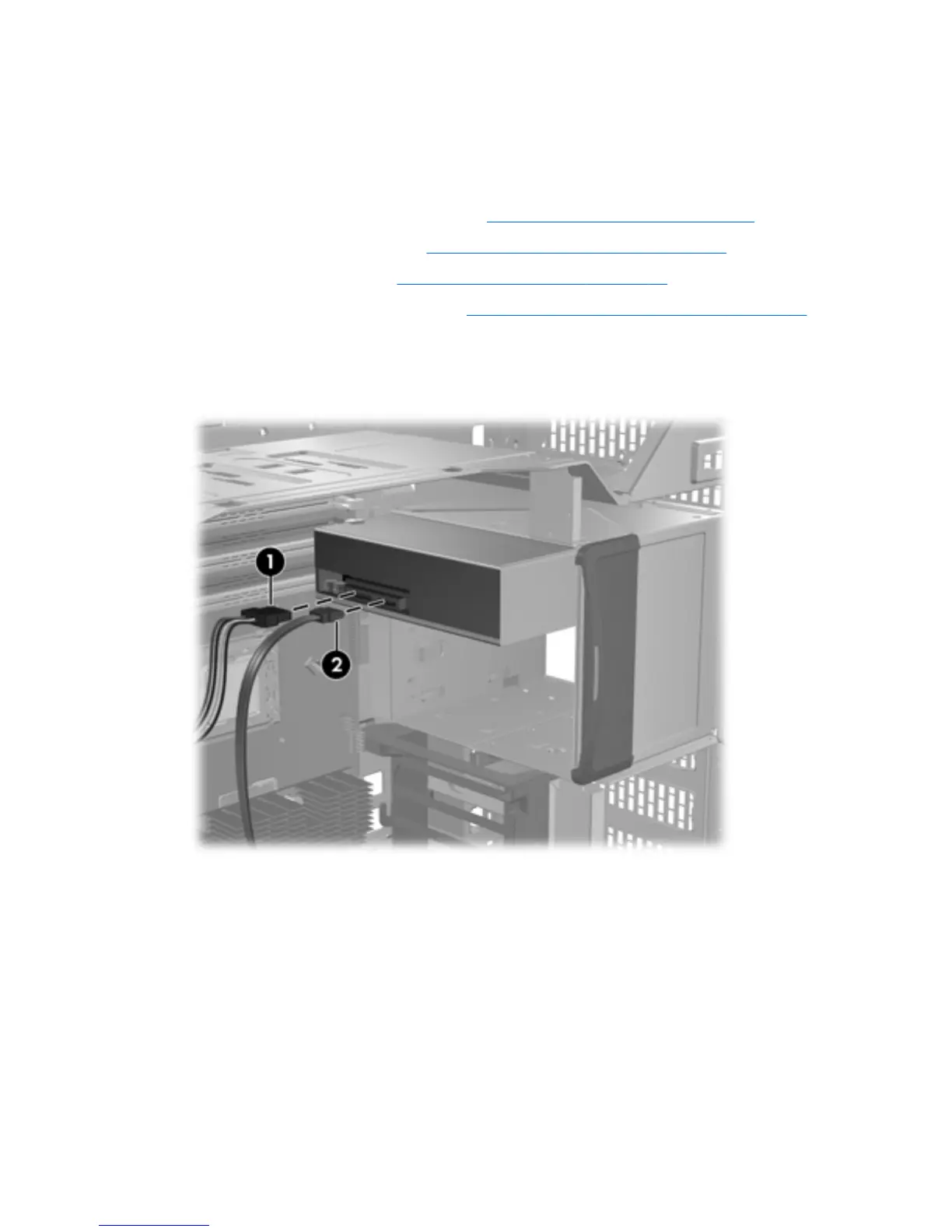

Figure 5-24 Disconnecting the optical disk drive cables
100 Chapter 5 Replacing components ENWW
