Removing a hard disk drive from the hard drive bay
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Press the hard drive carrier release latch at the green touch point and rotate the handle outward
(1). Pull the drive carrier out of the hard drive bay (2), as shown in the following figure.

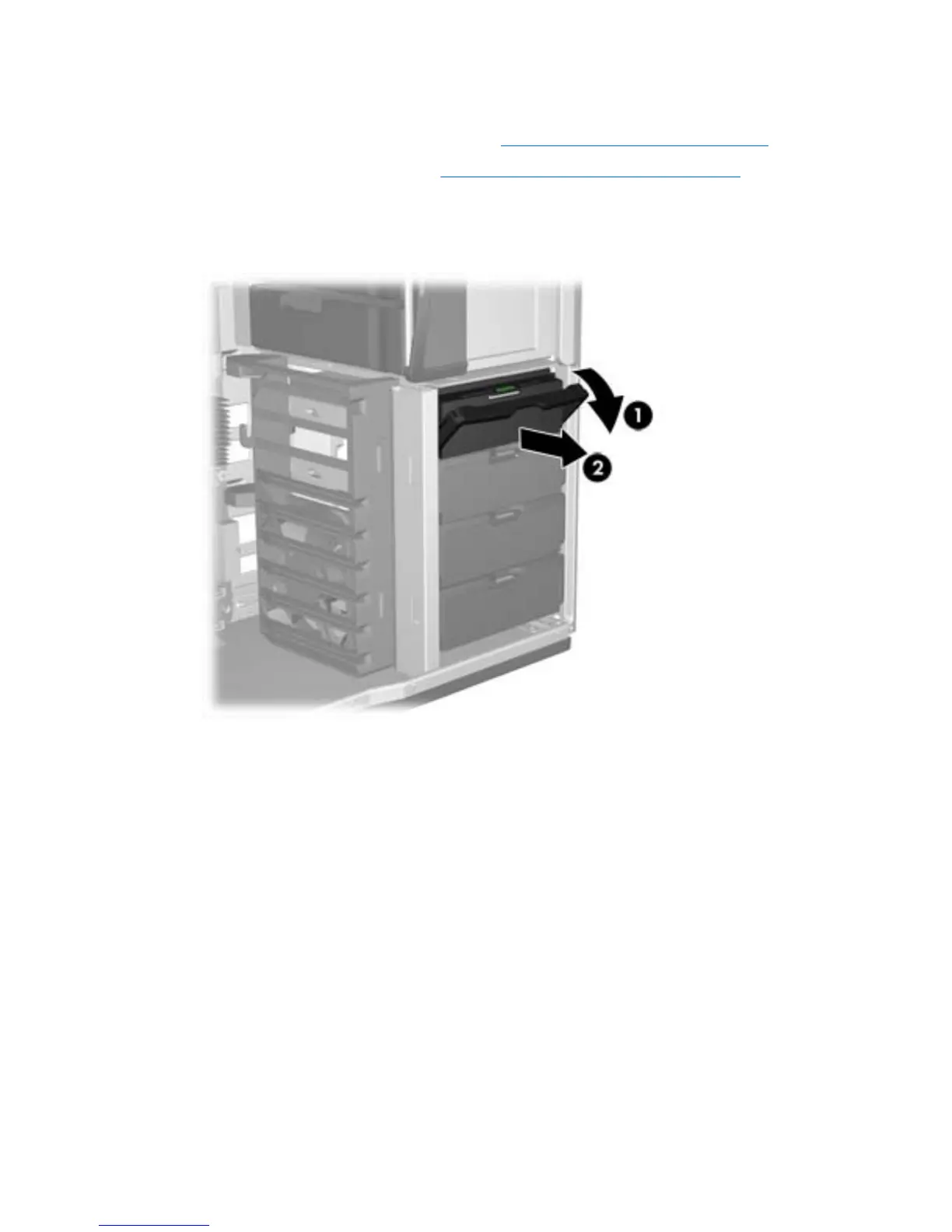

Figure 5-39 Removing the drive carrier from the chassis
ENWW
Removing and installing components
115
