Installing a DIMM
This section describes how to install a DIMM in the workstation.
Required DIMM installation order
DIMMs must be installed in a specified order, depending on the workstation processor configuration.
Single processor configuration
The illustration below shows the DIMM installation order for a single processor workstation.

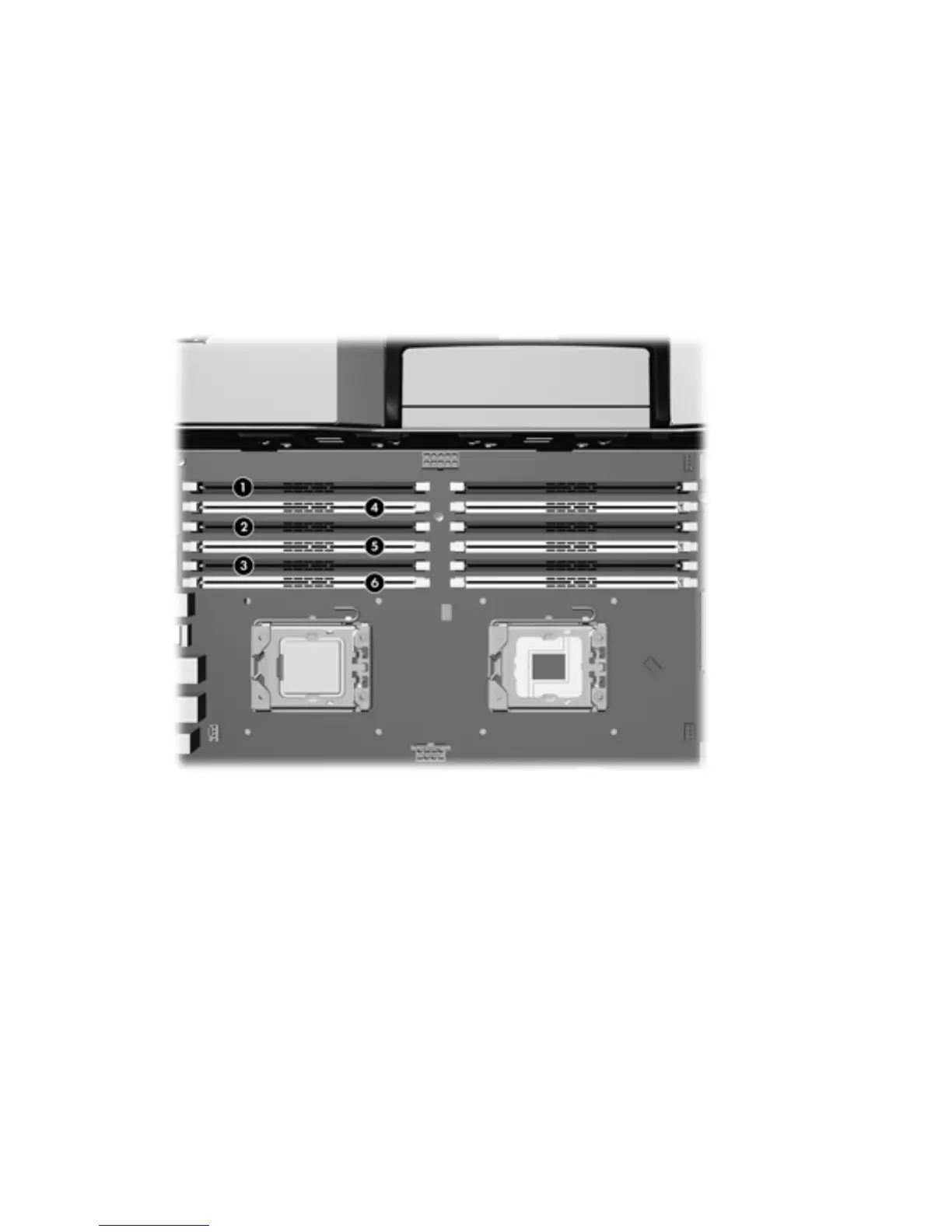

Figure 5-89 Single-processor DIMM installation order
ENWW
Removing and installing components
161
