Installing the memory fans
1.
With workstation power off and the chassis open, place the memory fan assembly tabs in the
chassis slots (1), as shown in the following figure.

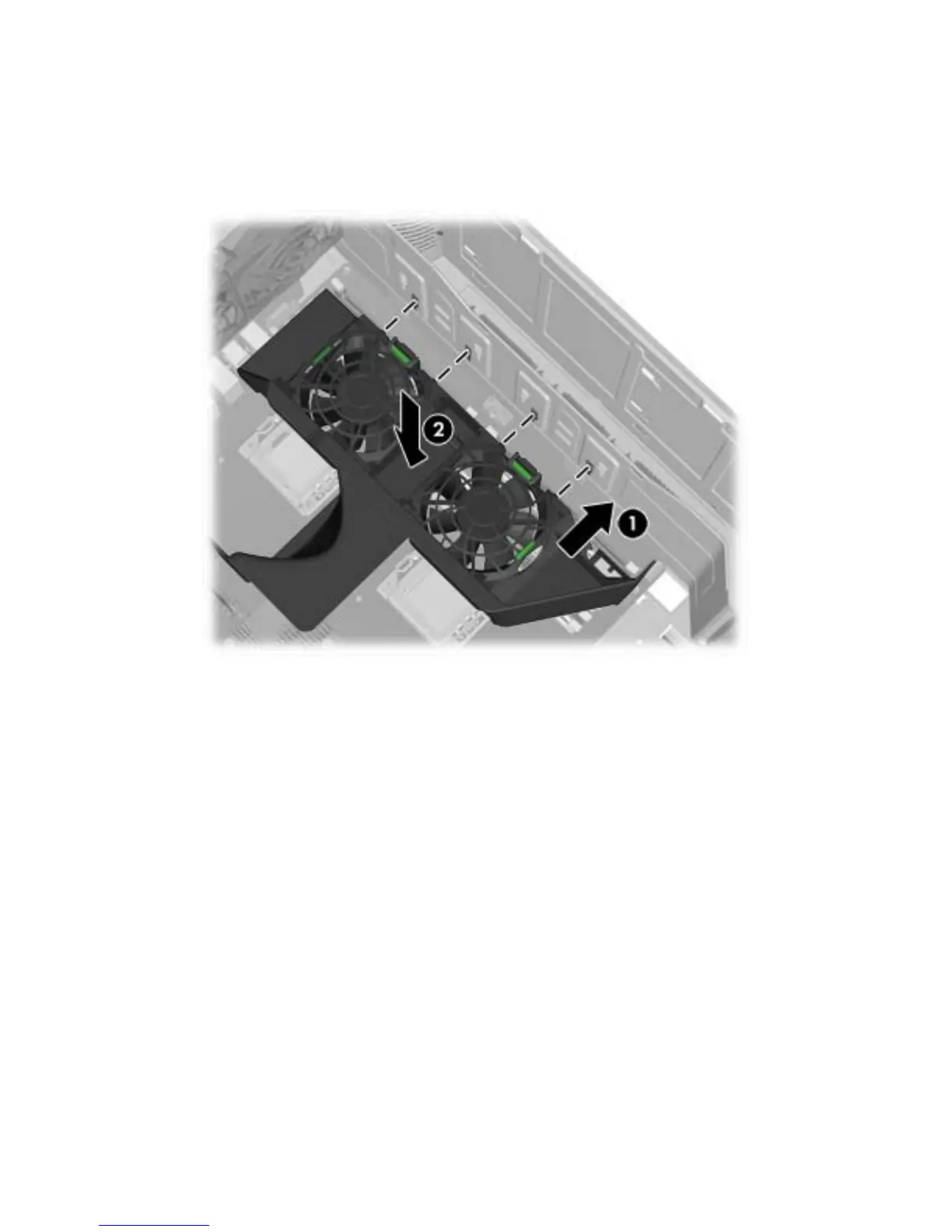

Figure 5-87 Installing the memory fan assembly
2.
Press the release tabs at the green touch points with the index fingers, while grasping the side of
the fan assembly with the remaining fingers. Carefully lower the fan assembly into the chassis until
it clicks into place (2).
