HP Z800 Service Manual

Installing a CPU
NOTE: HP recommends that you do not swap processors (CPUs) from one system board to another.
If installing a second CPU, it must be of the same type as the first CPU.
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Remove the airflow guide (see
Removing the airflow guide on page 80).
4.
Remove the memory fan assembly (see
Removing the memory fans on page 155).
5.
Remove the CPU heatsink (see
Removing the CPU heatsink on page 199).
6.
Remove the CPU (see
Removing a CPU on page 203).
7.
Using extreme care, fully raise the CPU socket lever and cover.
CAUTION: The CPU socket contacts are delicate. To avoid bending the contacts, use extreme
care when installing the CPU in the socket.
8.
If you are adding a second CPU to a single-processor system, remove the plastic cover from the
second CPU socket.
9.

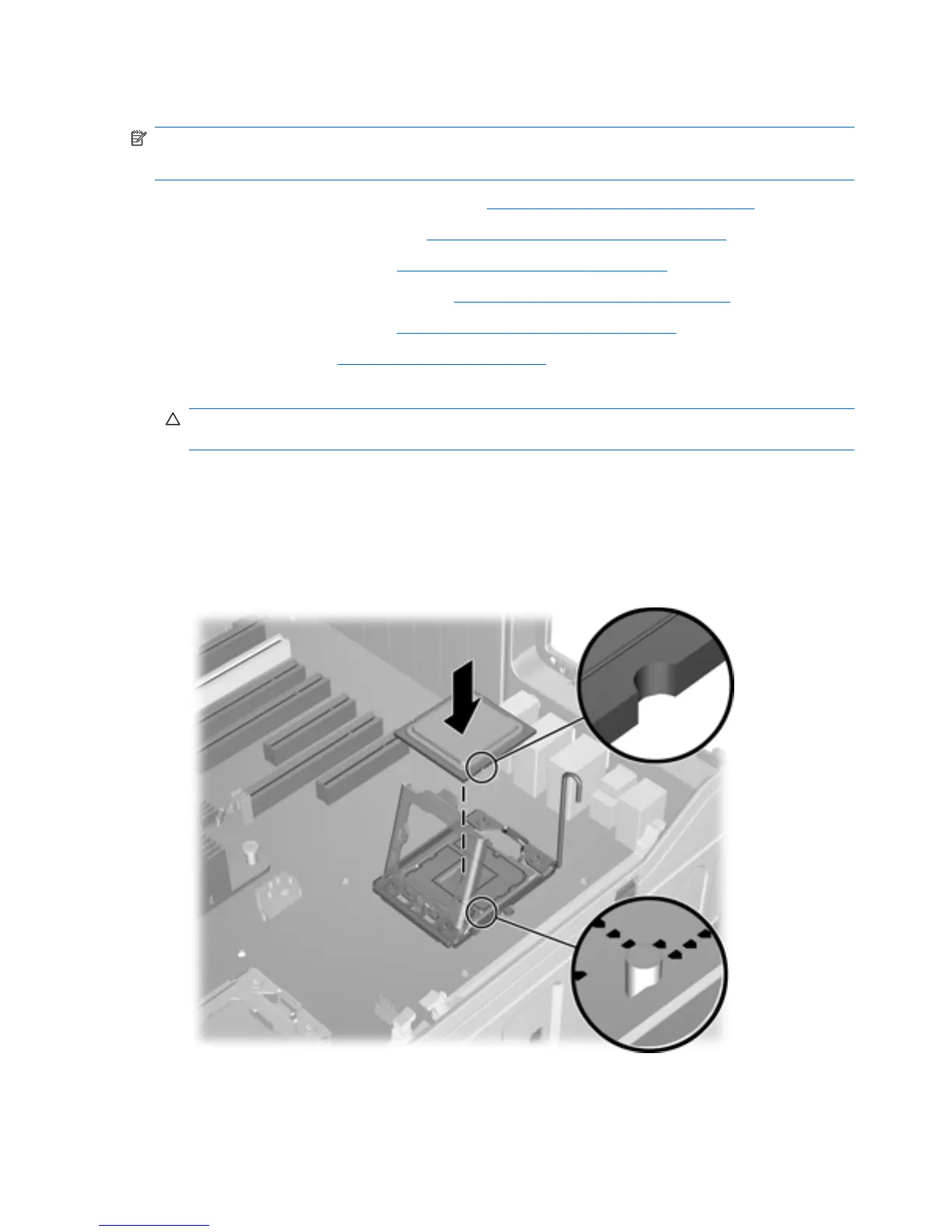

Align the notches in the CPU base with the tabs on the socket as shown in the following figure.
Seat the CPU into the socket. Ensure that the underside of the CPU is level with the top of the CPU
socket.
10.
Close the CPU cover plate by lightly pressing down on the CPU cover plate while closing the
socket lever.
204 Chapter 5 Replacing components ENWW

HP Z800 Specifications

General

Processor cache	8 MB
Processor model	E5560
Processor frequency	2.8 GHz
Processor cache type	L2
Processor manufacturer	Intel
Processor front side bus	1333 MHz
Number of processors installed	2
Audio system	Integrated High Definition Realtek ALC262 Audio, optional Creative X-Fi Titanium PCIe Audio Card, optional HP Thin USB Powered Speakers
Product type	Workstation
Motherboard chipset	Intel® 5520
ECC	Yes
Maximum internal memory	192 GB
HDD speed	15000 RPM
HDD capacity	446 GB
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD Super Multi
Card reader integrated	No
I/O ports	Front: 3 USB 2.0, 1 IEEE 1394a, 1 microphone in, 1 headphone out; Rear: 6 USB 2.0, 1 IEEE 1394a, 1 audio in, 1 audio out, 1 microphone in, 2 PS/2, 2 RJ-45 to integrated Gigabit LAN, 1 serial; Internal: 3 USB 2.0
Headphone outputs	1
USB 2.0 ports quantity	9
Parallel ports quantity	0
Power supply	1110 W
Power consumption (typical)	240 W
Non-operating altitude	9100 m
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	8 - 90 %
Operating relative humidity (H-H)	8 - 85 %
Display	HP LP1965 19-inch LCD Monitor, HP LP2065 20-inch LCD Monitor, HP LP2275w 22-inch Widescreen LCD Monitor, HP LP2475w 24-inch Widescreen LCD Monitor, HP DreamColor LP2480zx Professional Display (24-inch widescreen), HP LP3065 30-inch Widescreen LCD Monitor (all sold separately)
Drive bays	3 external 5.25\
Graphics card	-
Keyboard type	HP PS/2 Standard Keyboard
Expansion slots	1 PCI, 1 PCI Express Gen1 (x8 mechanically, x4 electrically), 1 PCI Express Gen2 (x8 mechanically, x4 electrically), 2 PCI Express Gen2 (x16 mechanically, x8 electrically), 2 PCI Express Gen2 x16
Pointing device	HP USB Laser Scroll Mouse
Power requirements	1110 watts wide-ranging, active Power Factor Correction, direct connection Power Supplies
Storage drive type	300 GB 15000 rpm SAS 146 GB 15000 rpm SAS SAS 146 GB + 300 GB
HDD controller type	SATA (10000 rpm) SATA (7200 rpm) SAS (15000 rpm)
Video card features	No integrated Graphic Card
Maximum HDD capacity	450 GB
Storage drive controller	Integrated 6 channel SATA 3 Gb/s controller with RAID (0, 1, 5 or 10) capability, integrated 8 channel SAS controller with RAID (0, 1 or 10) capability, optional LSI 8888 ELP 8-port SAS HW with RAID (0, 1, 5 or 10) capability
Minimum storage drive space	146 GB
Operating system installed	Windows Vista Business
Compatible operating systems	HP Installer Kit for Linux
Chassis type	Mini Tower
Country of origin	China

Weight and Dimensions

Depth	526.5 mm
Width	203.5 mm
Height	445.1 mm
Weight	19500 g
