Pull out the power supply locking handle marked with the green label (1).
Use the handle to pull the power supply out of the chassis (2) as show in the following figure.

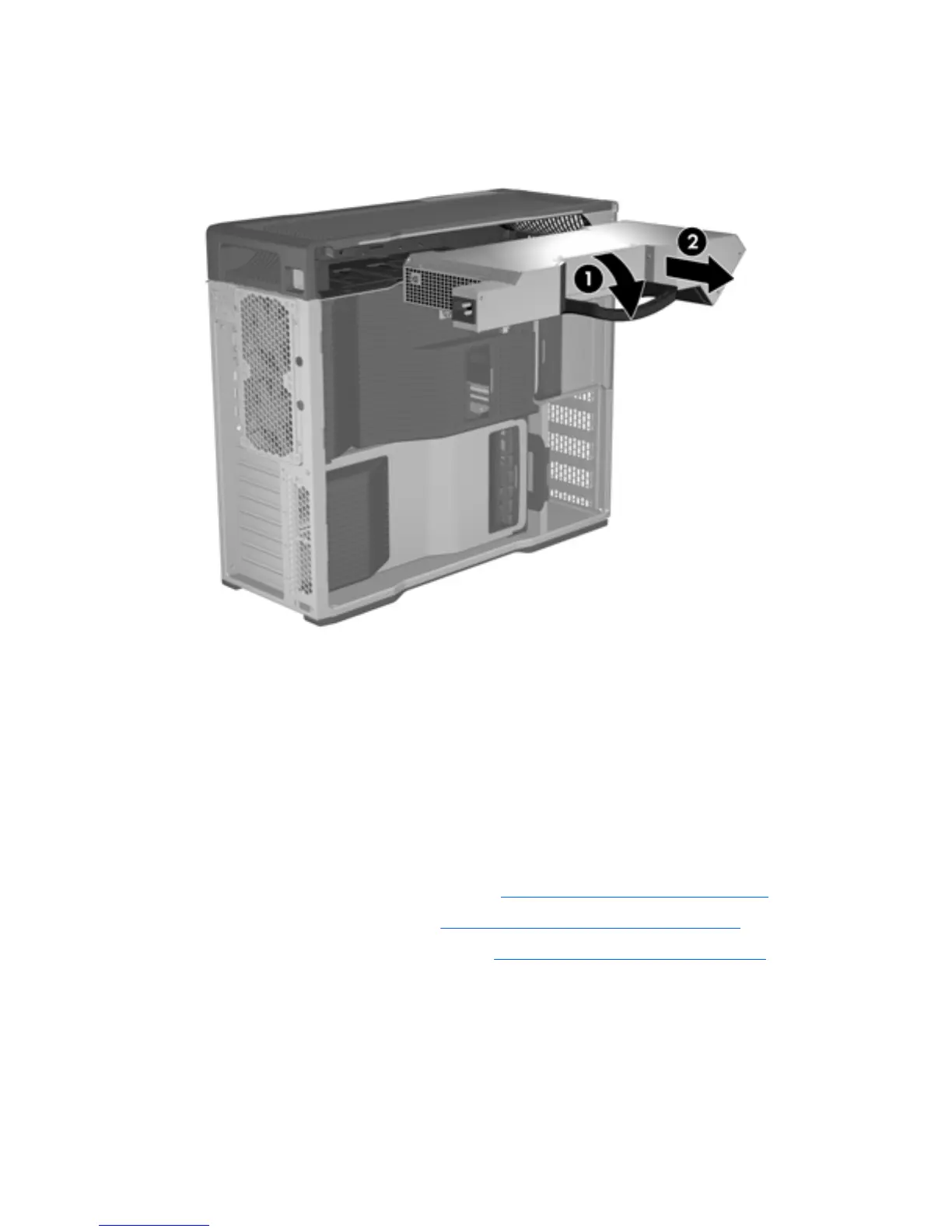

Figure 5-11 Removing power supply
Installing the power supply
Slide the power supply into the chassis, keeping the handle completely open. When the power supply
handle engages the chassis, rotate the handle inward until it snaps into place to secure the power
supply.
Speaker
This section describes how to remove and install the speaker.
Removing the speaker
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Remove the workstation power supply (see
Removing the power supply on page 86).
