Installing a PCI card
1.
Disconnect power from the workstation (see
Predisassembly procedures on page 77).
2.
Remove the side access panel (see
Removing the side access panel on page 79).
3.
Remove the expansion card support (see
Removing the expansion card support on page 82).
4.
Raise the rear retention clamp by lifting the metal bar or the green lever as shown in the following
figure (1).

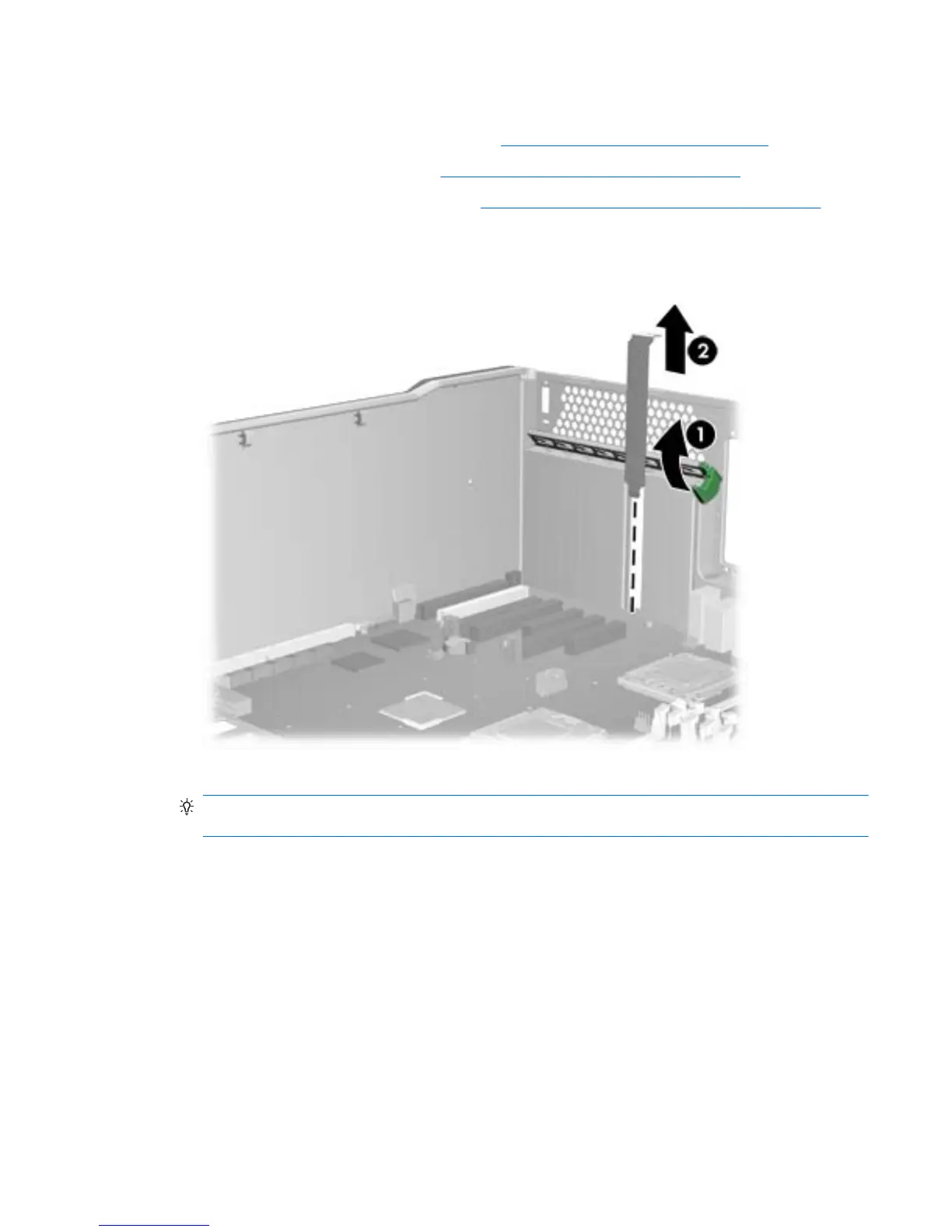

Figure 5-100 Removing the slot cover
5.
Lift the slot cover straight up to remove it from the chassis (2).
TIP: Grasp the slot cover between two fingers—one from the inside of the chassis, and one from
the outside.
