6.
Lift the drive release latch at the green touch point (1), and gently slide the drive out of the chassis
(2), as shown in the following figure.

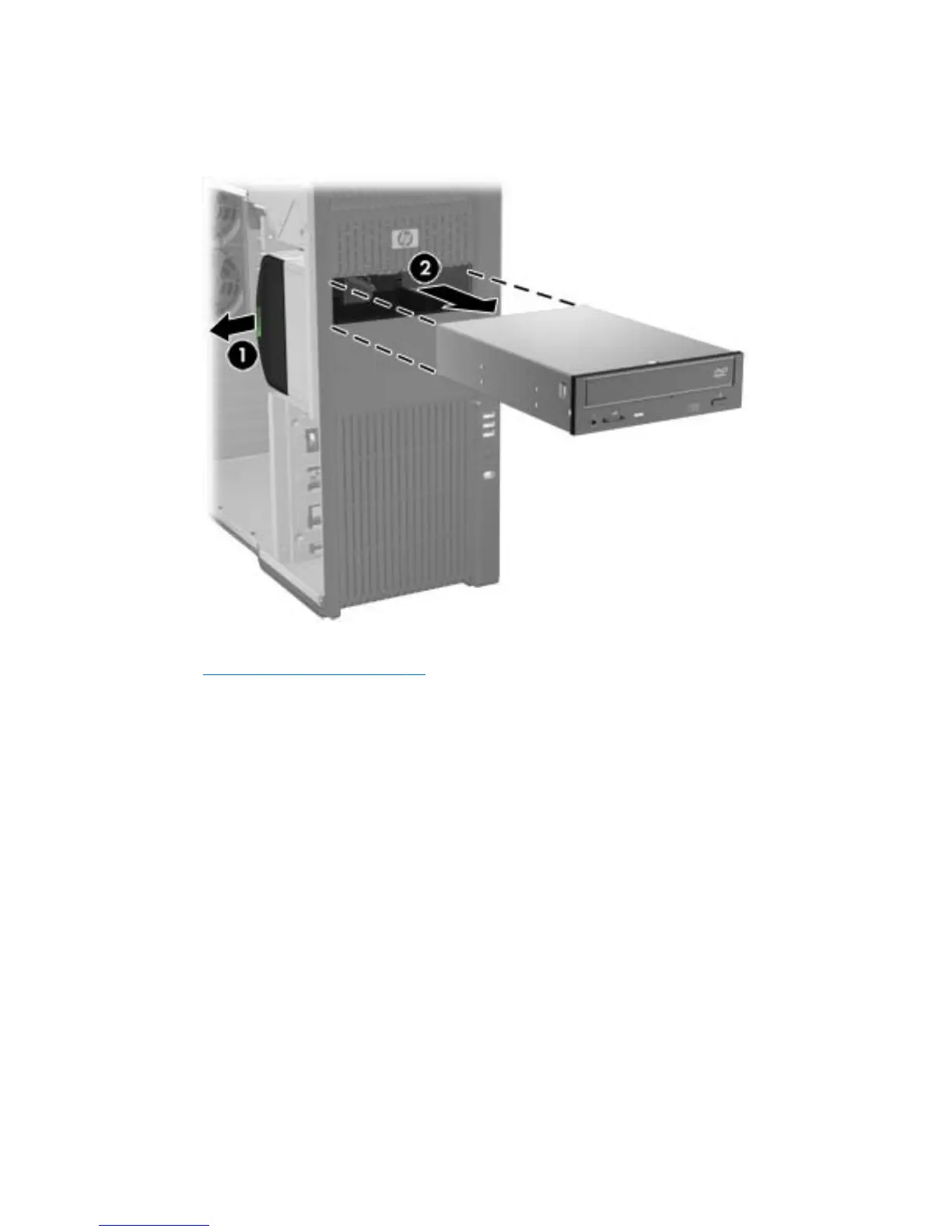

Figure 5-25 Removing the optical disk drive
7.
If you are not installing another optical disk drive, add a filler tray to the empty bay slot (see
Installing a filler tray on page 99).
ENWW
Removing and installing components
101
