2.
Orient the front system fan so that the fan label points into the expansion card guide/front fan
holder.

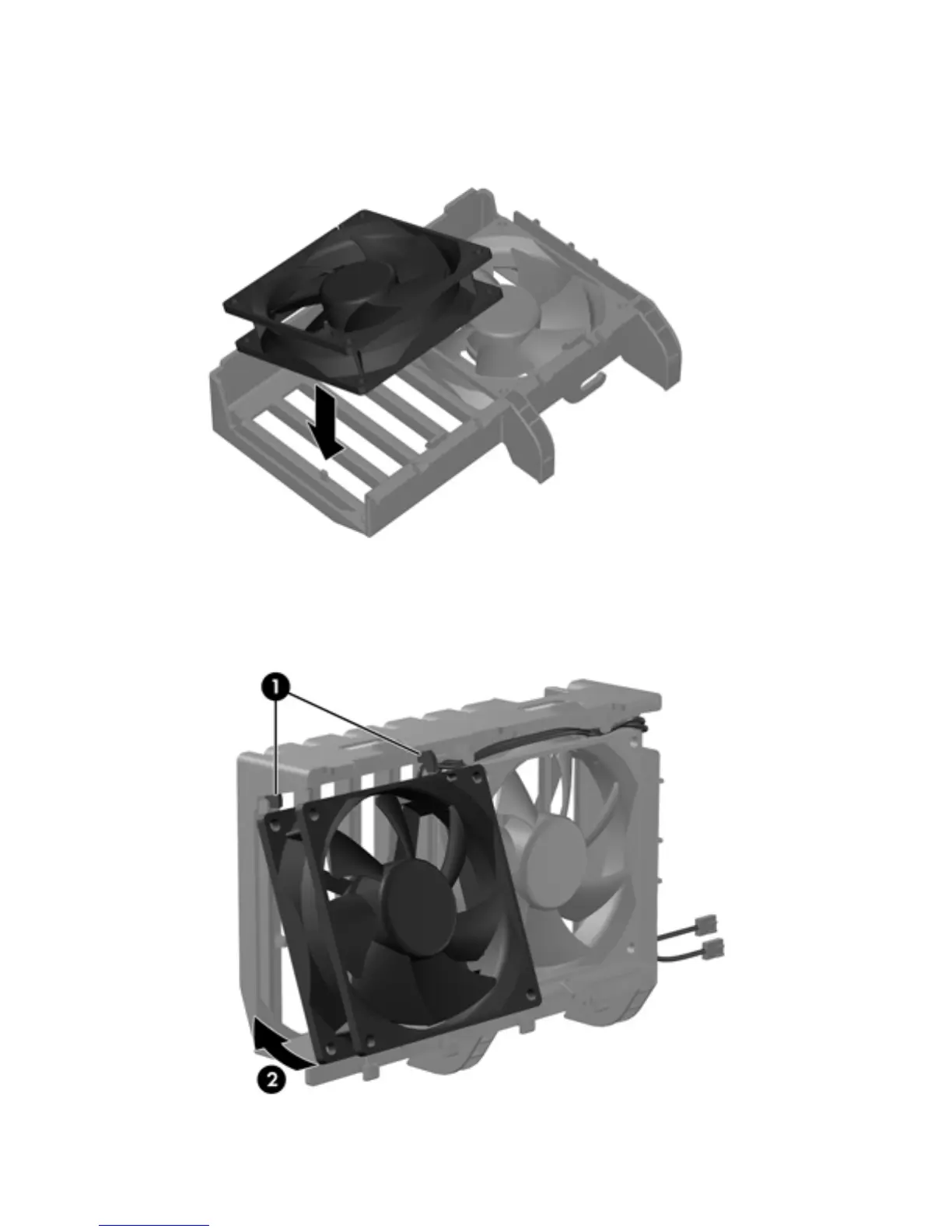

Figure 5-79 Orienting the fan in the fan holder
3.
Insert the fan cable under the fan holder hooks (1), as shown in the following figure.
Rotate the fan near the retention tab and press it until it snaps into place in the fan holder (2).
Figure 5-80 Inserting the fan in the holder
