3.
Connect the front panel I/O cable assembly cables to the system board as shown in the following
figure.

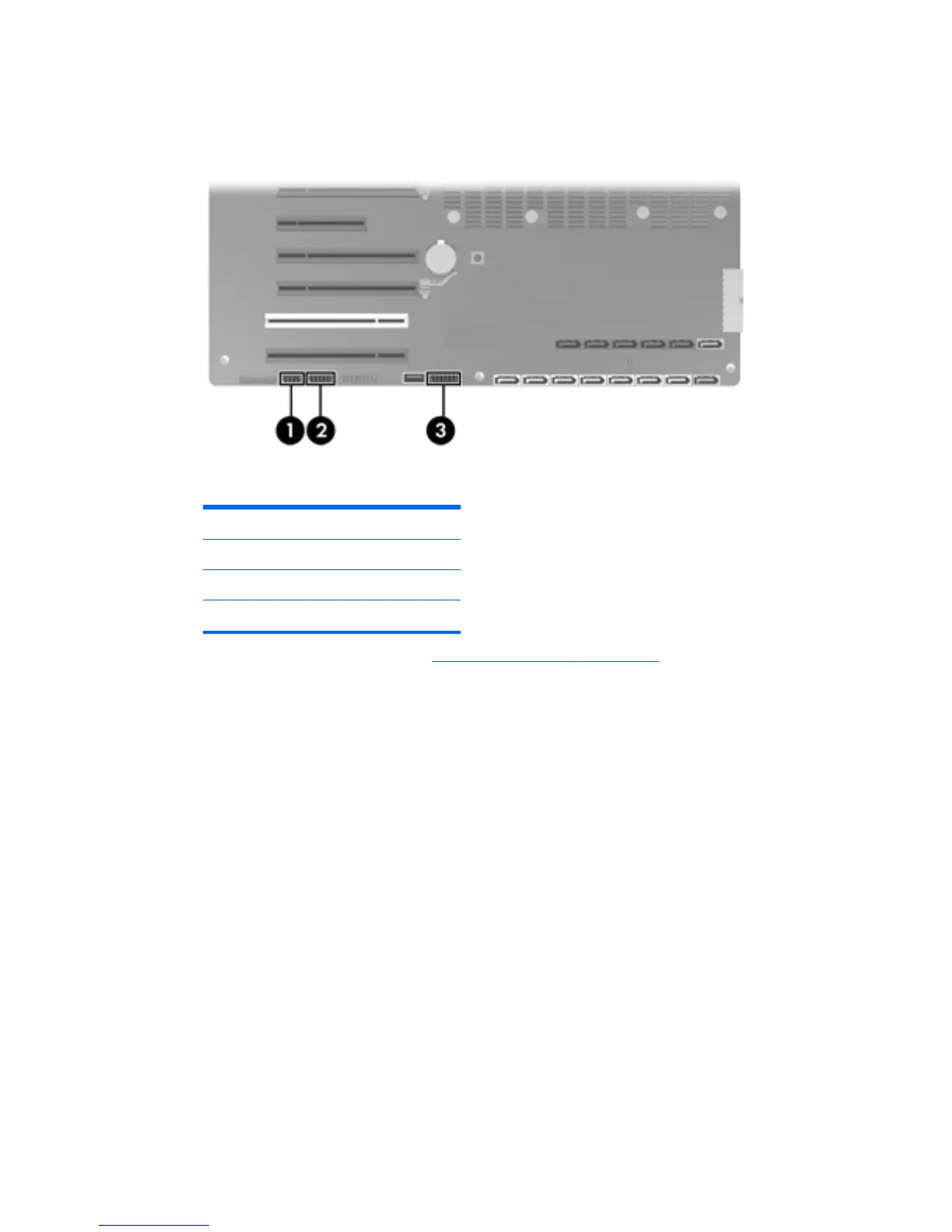

Figure 5-19 Connecting the front panel I/O cable assembly cables
Table 5-5 Connecting the front
panel I/O cable assembly cables
Item Description
1 Front audio
2 Front 1394a
3Front USB
4.
Reconnect the speaker cable (see
Installing the speaker on page 88 ), and replace the tie wraps
that secure the front panel I/O cables to the chassis.
5.
Reinstall all removed components and reconnect any cables that have been disconnected.
ENWW
Removing and installing components
95
