6.

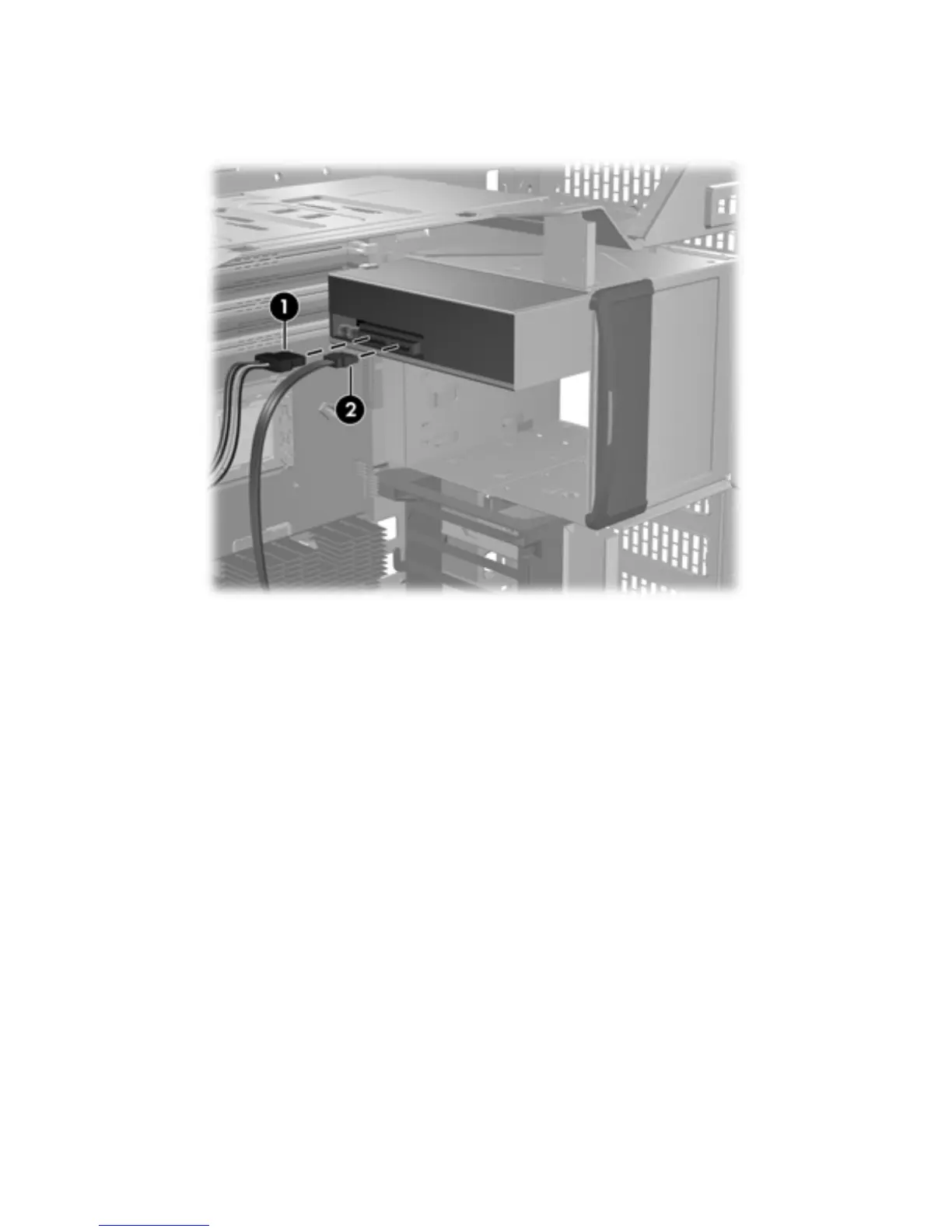

Connect the power (1) and data (2) cables to the drive as shown in the following figure.
Figure 5-27 Connecting power and data cables
ENWW
Removing and installing components
103
