8.
Lift and hold the drive release latch at the green touch point (1), and then slide the slot load
assembly out of the chassis (2), as shown in the following figure.
TIP: Push on the slot load assembly from the inside of the chassis.

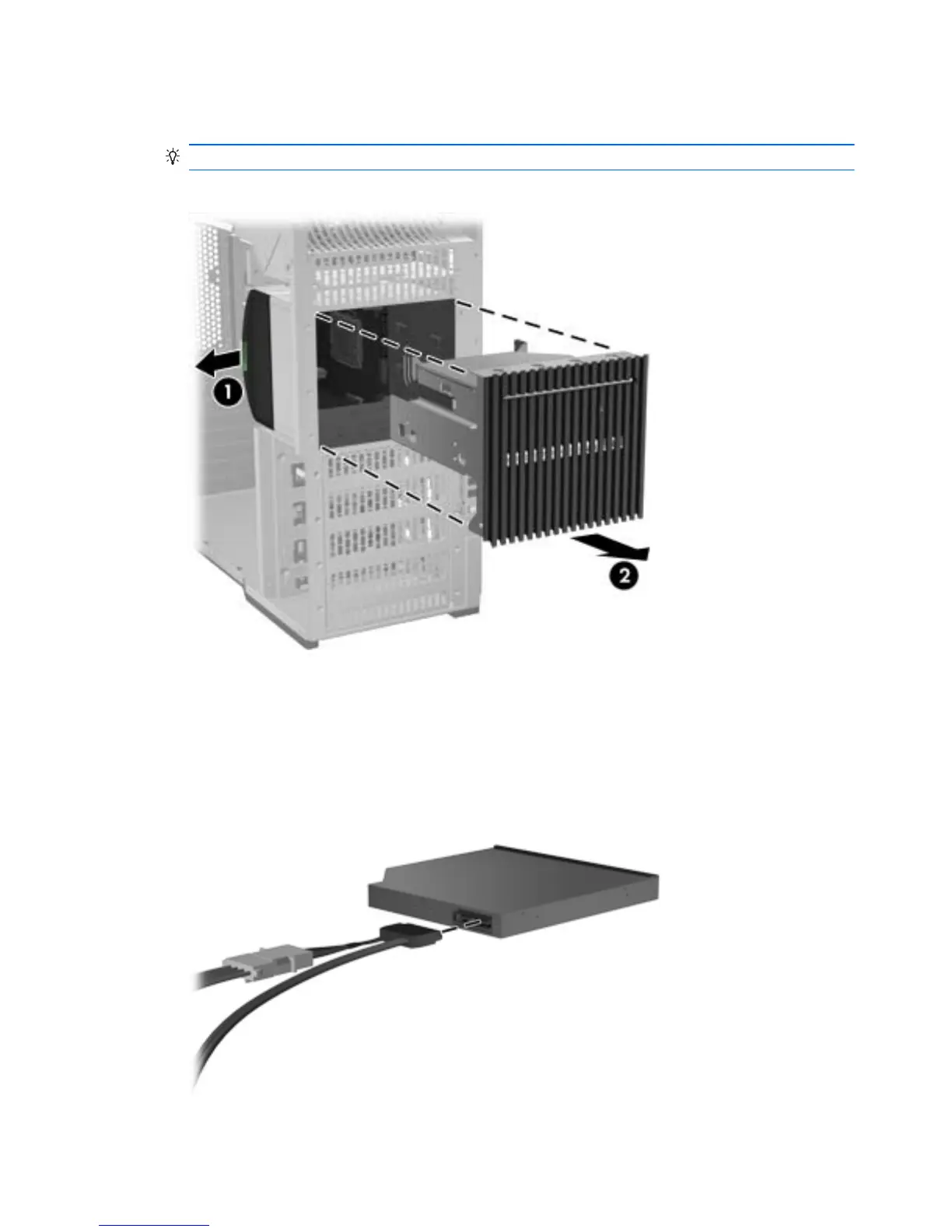

Figure 5-31 Removing the slot load assembly
9.
Disconnect the power/data cable from the slot load optical disk drive.
Figure 5-32 Disconnecting the power/data cable from the drive
108 Chapter 5 Replacing components ENWW
