7.
Disconnect the chassis power cable from the slot load drive power connector as shown in the
following figure.

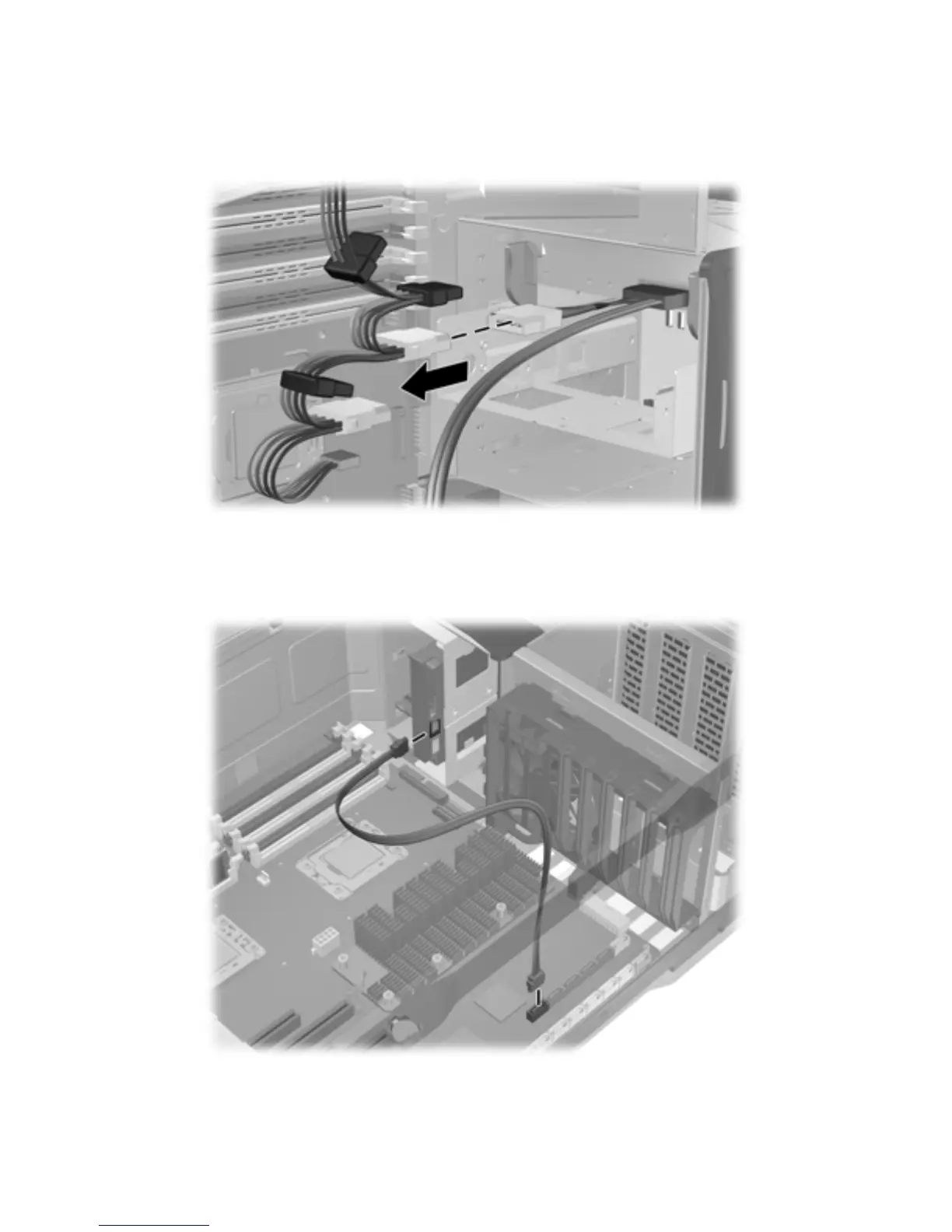

Figure 5-46 Disconnecting chassis power cable from hard disk drive connector
8.
Disconnect the data cable from the hard drive (1), and from the system board connector (2), as
shown in the following illustration.
Figure 5-47 Disconnecting the data cable from the hard drive
ENWW
Removing and installing components
123
