5.
Lift and hold the drive release latch at the green touch point (1) while sliding the slot load carrier
into the bay. When the front of the carrier is near its final position, release the latch, but continue
to slide the carrier inward until the latch closes and engages the carrier (2).
NOTE: Install the slot load optical bay with the slot load drive at the top.

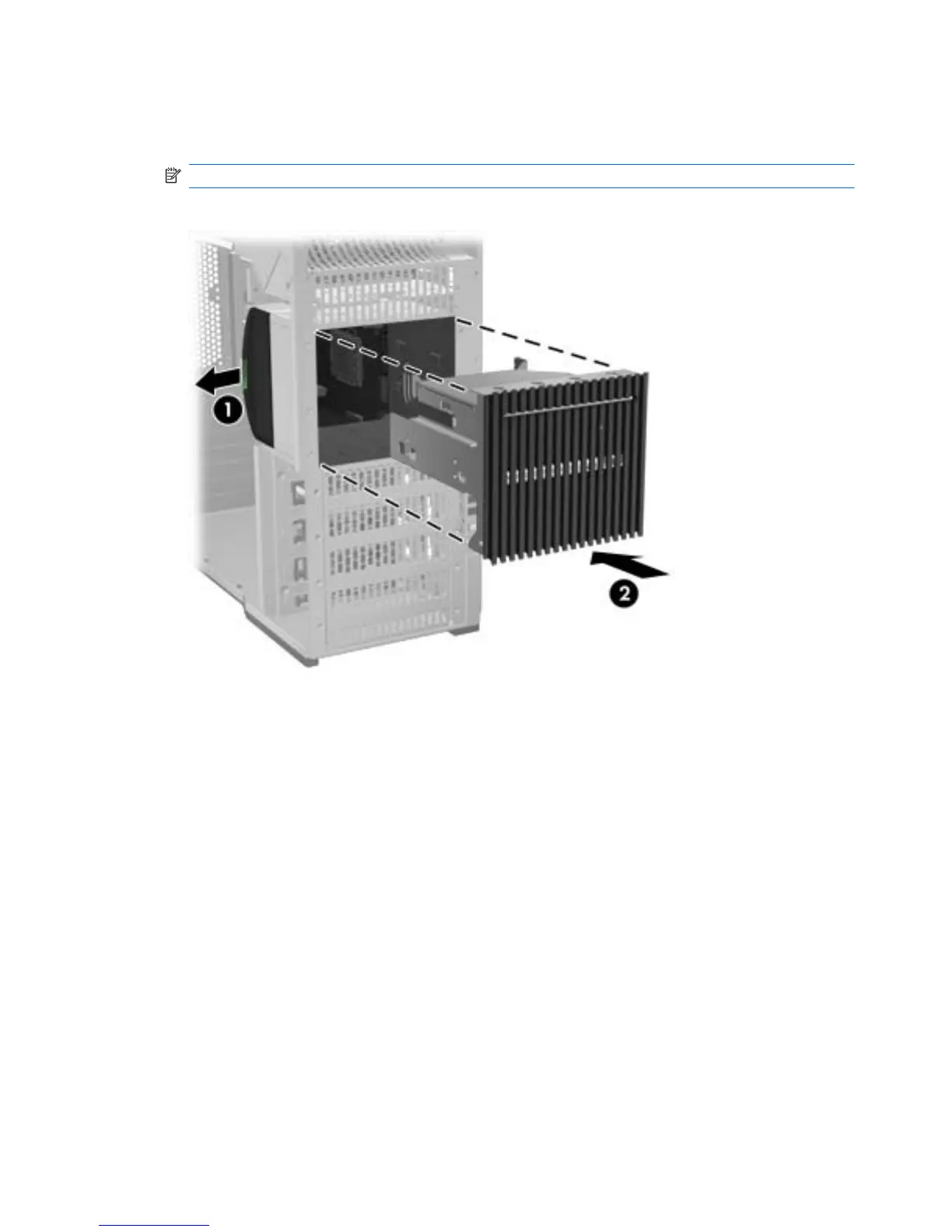

Figure 5-54 Installing the slot load assembly in the chassis
128 Chapter 5 Replacing components ENWW
