7.
Connect the data cable to the hard drive (1) and to the system board connector (2), as shown in
the following illustration.
If the hard disk drive is SAS, attach a SATA-SAS adapter to the drive before connecting the data
cable.
TIP: Route the data cable along the system board.

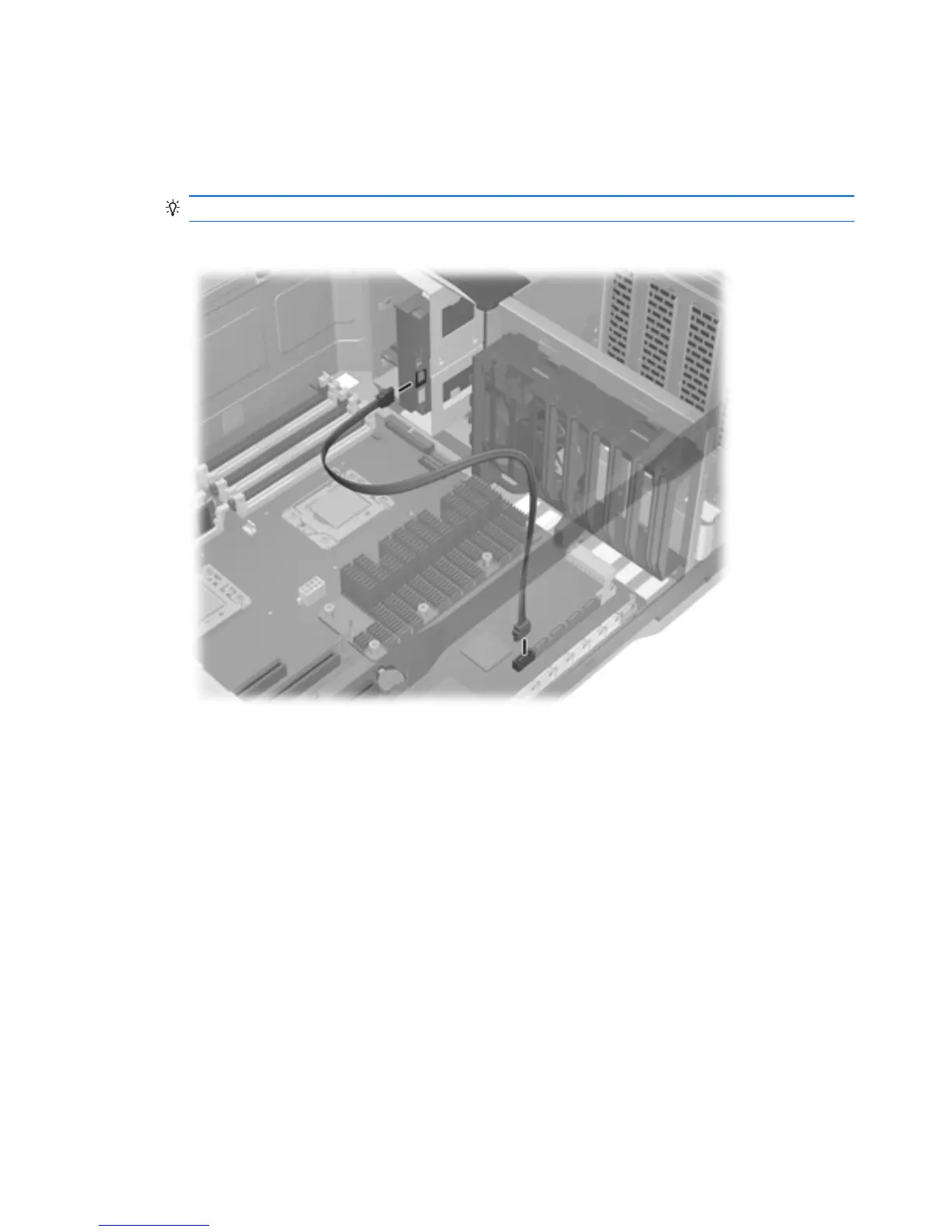

Figure 5-56 Connecting the hard drive data cable to the drive
