HP Z800

6.

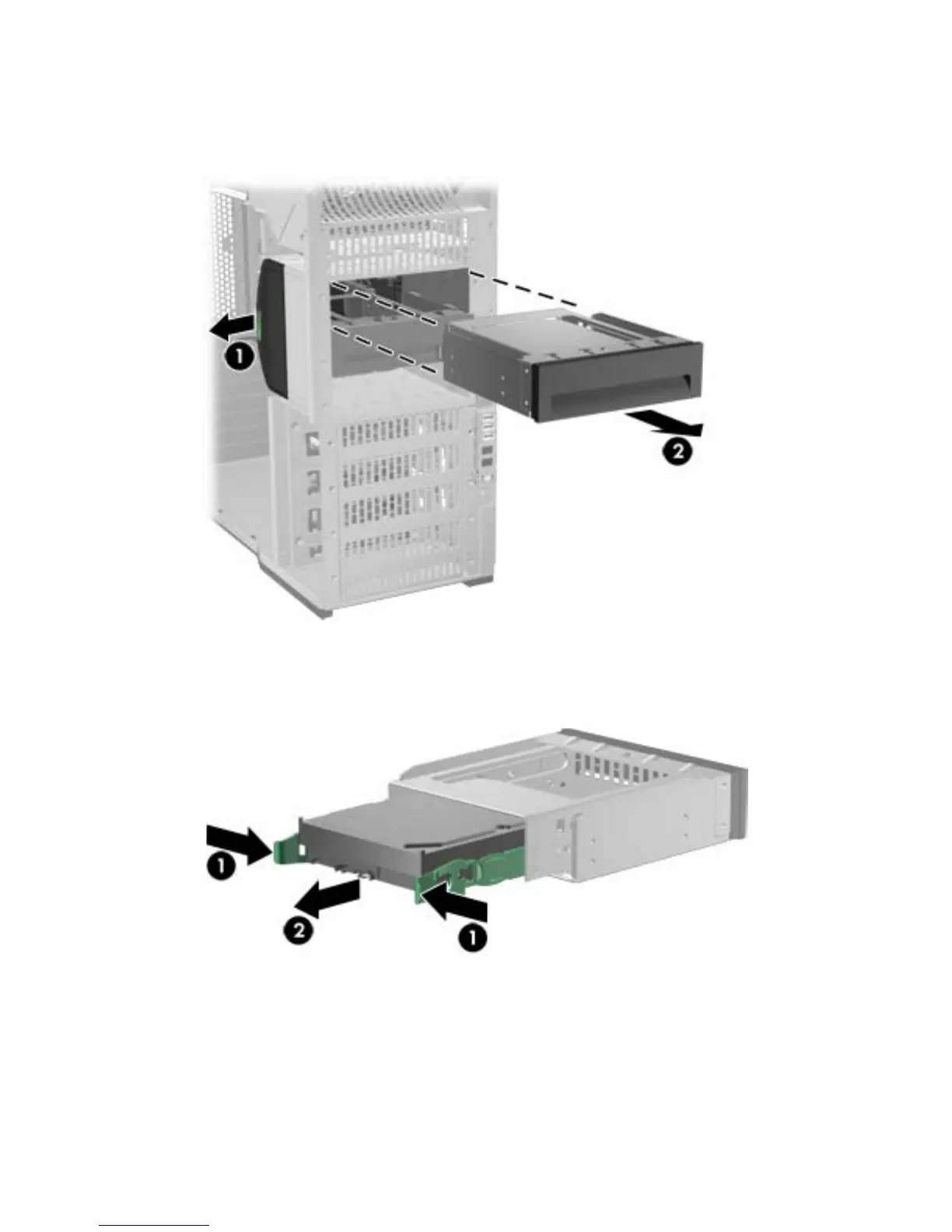

Lift the drive release latch at the green touch point (1), and then slide the hard drive carrier from
the chassis as shown in the following figure (2).
Figure 5-60 Removing the drive from the ODD bay
7.
Carefully squeeze the ends of the rails together (1), and then slide the drive out of the carrier (2),
as shown in the following figure.
Figure 5-61 Removing the drive from the carrier
ENWW
Removing and installing components
133
