7.
Insert the hard drive, as shown in the following figure:
a.
Slide the hard drive carrier into the optical disk drive bay cage until it reaches the release
latch.
b.
Pull the latch (1), and slide the drive carrier past the latch into the chassis.
c.
Release the latch, and then slide the assembly further into the chassis until it snaps into place
(2).

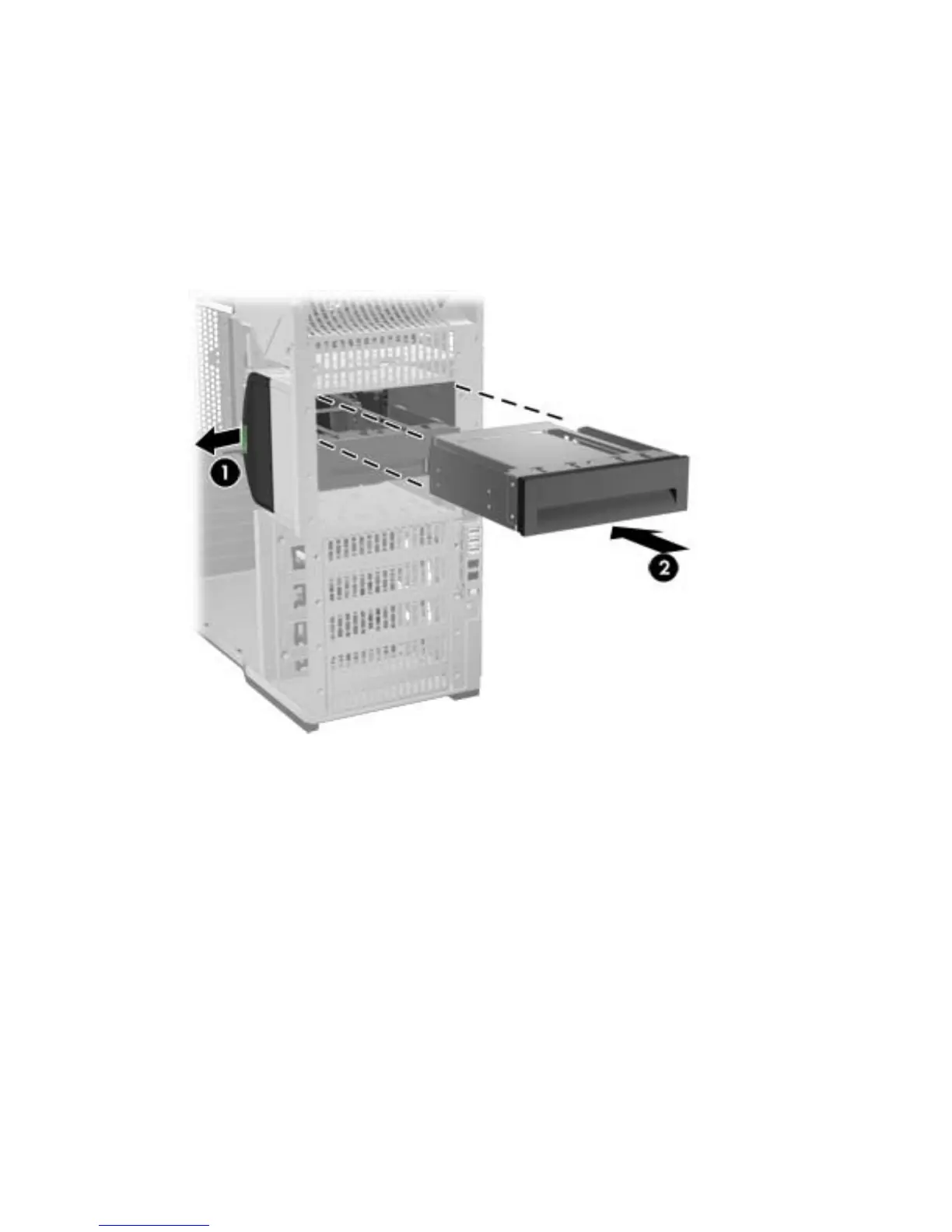

Figure 5-65 Installing the drive carrier in the ODD bay
136 Chapter 5 Replacing components ENWW
