10.
Press firmly on the two recessed green touch points on the top of the expansion card guide/front
fan holder (1), as shown in the following figure.

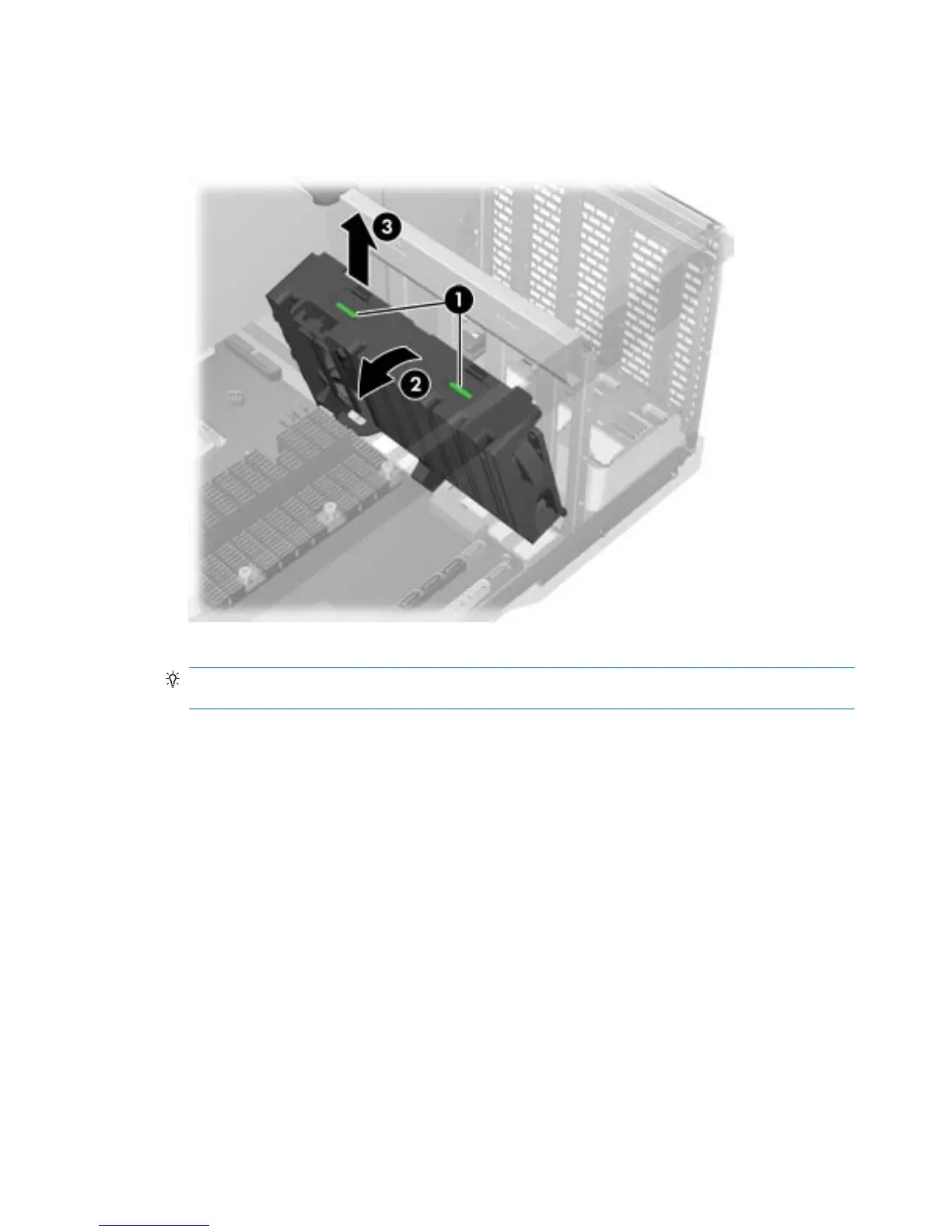

Figure 5-74 Removing the expansion card guide/front fan holder from the chassis
11.
Rotate the assembly (2), and then lift it out of the chassis (3).
TIP: Move any cables that might be in the way so that you can easily tilt and remove the
assembly.
144 Chapter 5 Replacing components ENWW
