8.
Connect the front system fan cable(s) to the system board as shown in the following figure. If there
is only one fan, connect its cable to the inner-most connector.

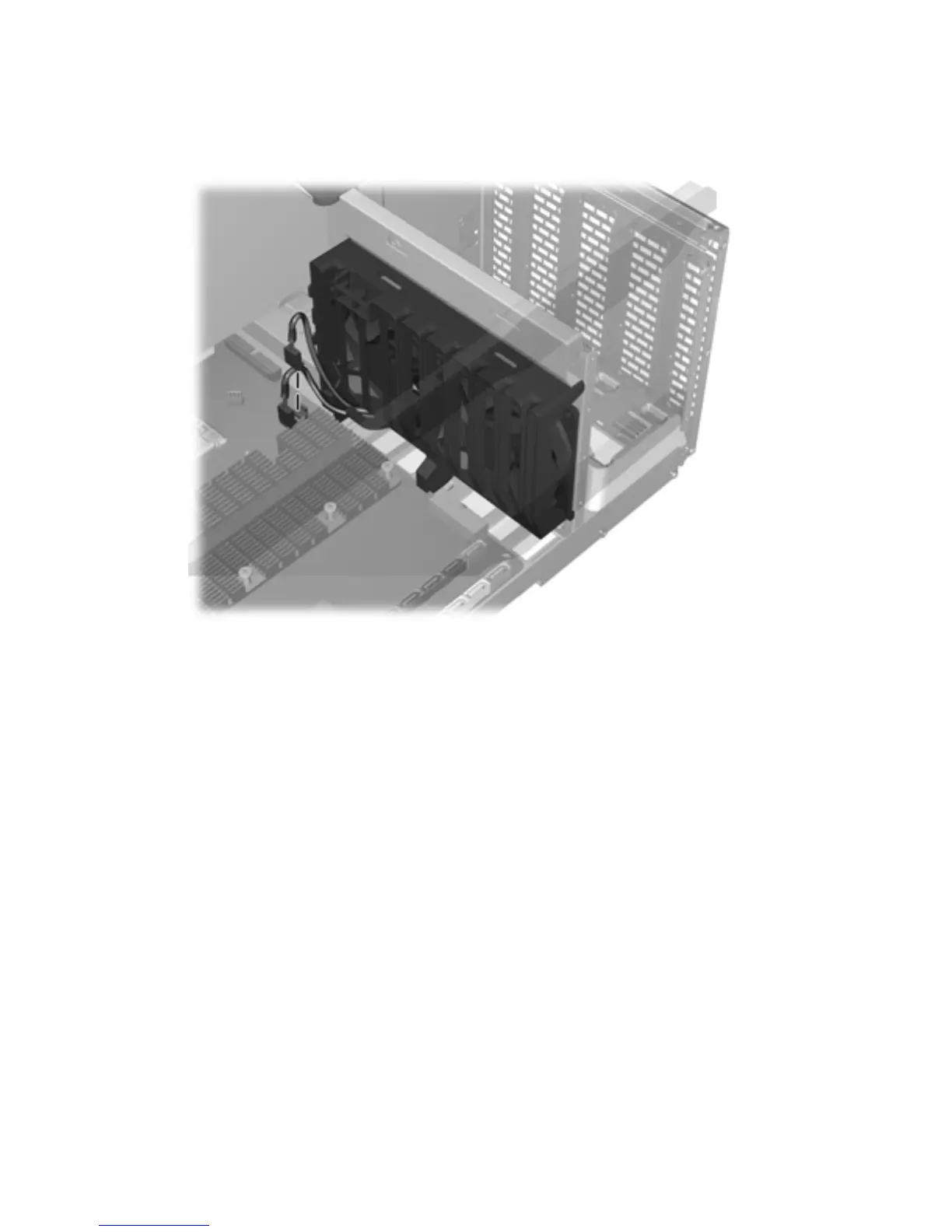

Figure 5-84 Connecting the fan cable
9.
Reinstall all removed components and reconnect any cables that have been disconnected.
154 Chapter 5 Replacing components ENWW
