6.
Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket (1), as shown in the following figure.
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or
DIMM damage, align these guides properly when installing DIMMs.

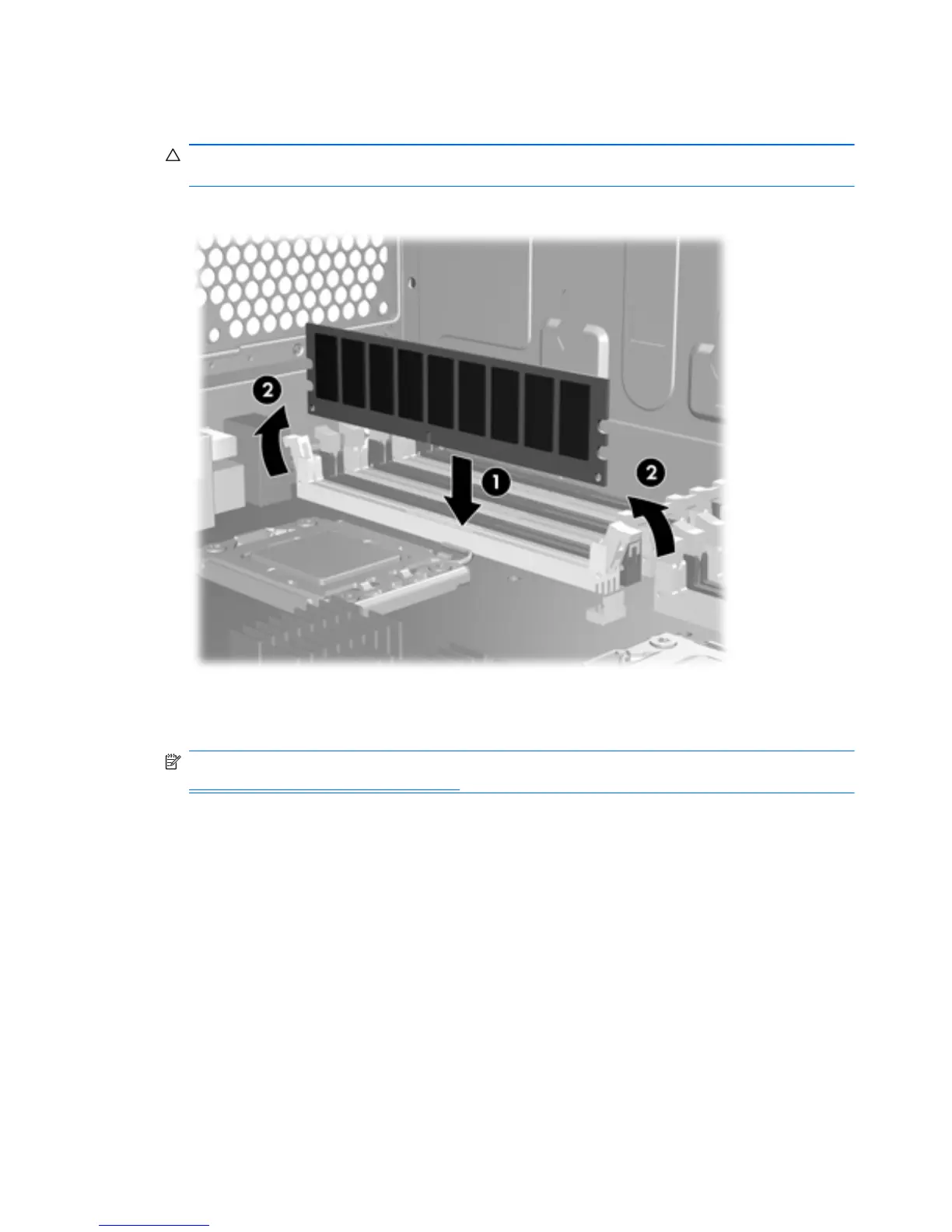

Figure 5-92 Seating the DIMM
7.
Secure the socket levers (1), as shown in the above figure..
8.
Reinstall all removed components and reconnect any cables that have been disconnected.
NOTE: If you receive a DIMM-related error message after you re-start the workstation, refer to
BIOS errors and warnings on page 159 for error message information.
164 Chapter 5 Replacing components ENWW
