8.
If required by the card, connect the auxiliary power cable to the card, as shown in the following
figure:
a.
While pressing on the connector cable release (1), pull the connector away from the
receptacle on the expansion card guide/front fan holder (2).
b.
Connect the cable to the card (3).

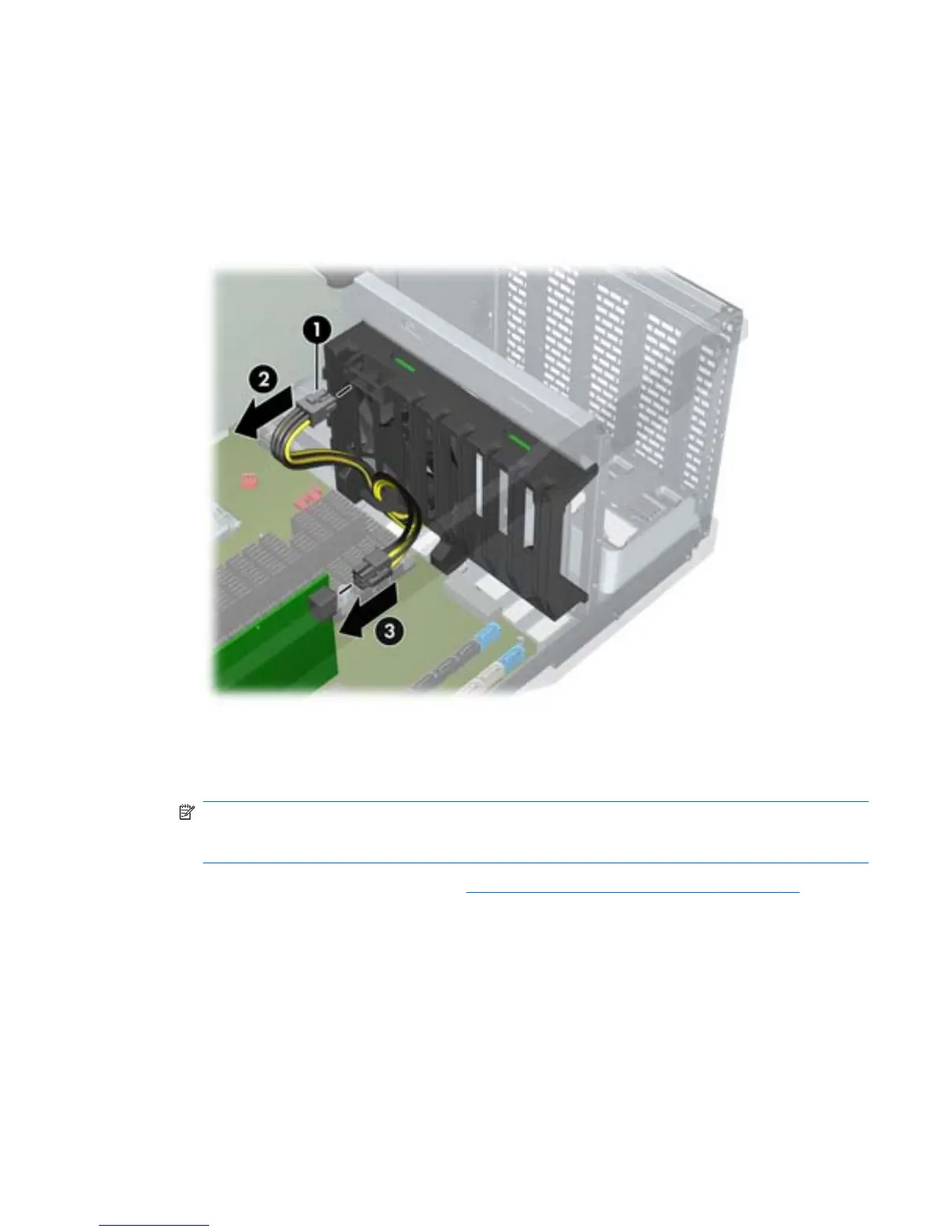

Figure 5-98 Connecting the auxiliary power cable
9.
If required by the card, connect other cables or accessories described in the card instructions.
10.
Close the expansion card retention clamp by rotating it downward. The retention clamp is secured
by the expansion card support.
NOTE: It is normal for the expansion card retention clamp to have a slight (5-10 degree) angle
when closed. If the angle is greater than this, open the clamp and ensure that all cards are
properly seated and all the brackets are mated to the chassis, then re-close the clamp.
11.
Install the expansion card support (see
Installing the expansion card support on page 85).
12.
Reinstall all removed components and reconnect any cables that have been disconnected.
ENWW
Removing and installing components
173
