4.
Remove the LCS air duct from the airflow guide.
a.
Press and hold the LCS air duct tab shown in the following figure (1).

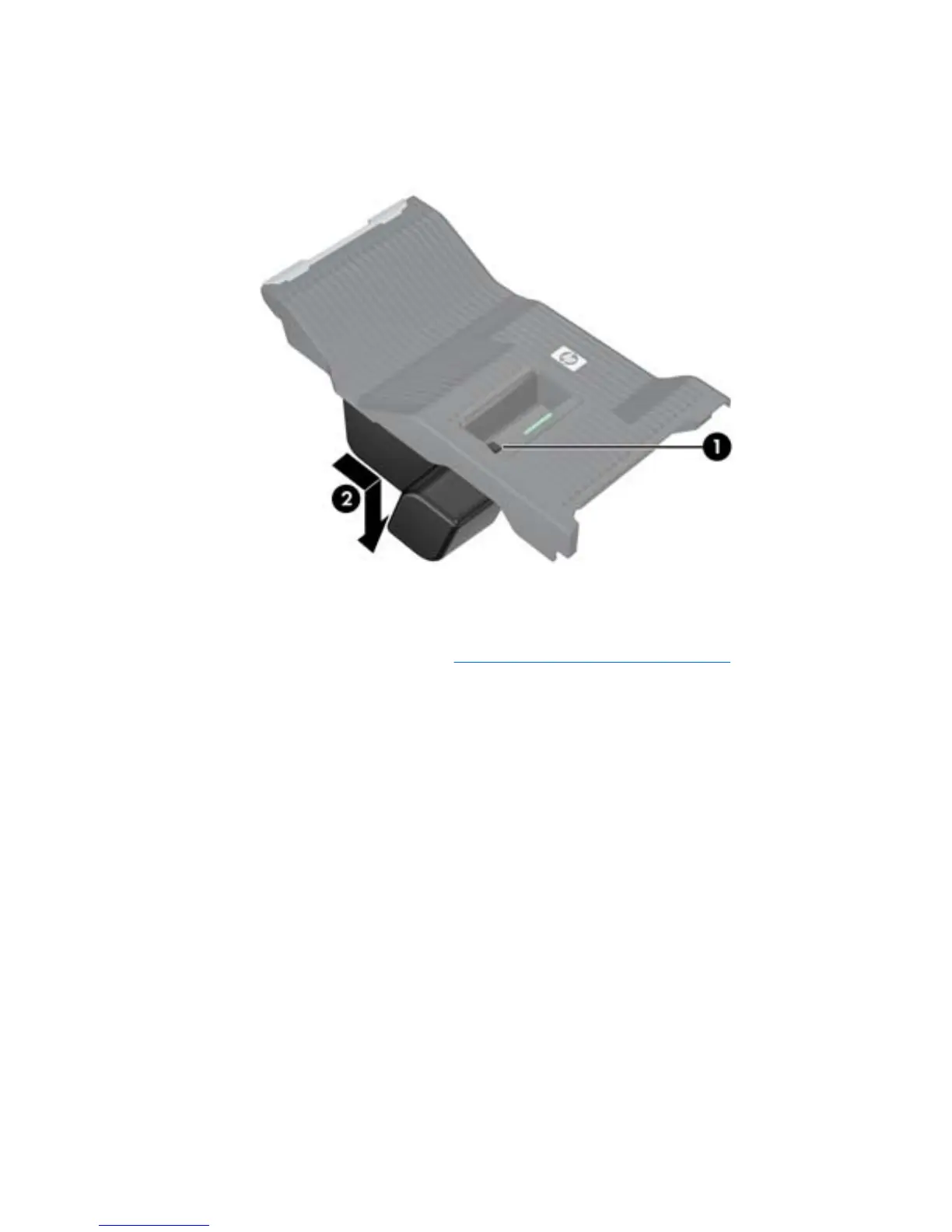

Figure 5-103 Removing the LCS air duct
b.
Slide the LCS air duct forward, and lower it from the workstation airflow guide (2), as shown
in the previous figure.
5.
Remove the memory fan assembly (see
Removing the memory fans on page 155).
178 Chapter 5 Replacing components ENWW
