9.
Prepare the chassis for system board removal.
a.
Move the optical drives out of the chassis far enough to clear the system board (see
Removing an optical disk drive from the optical drive bay on page 100).
Place the optical drive cables in the bottom optical drive bay.

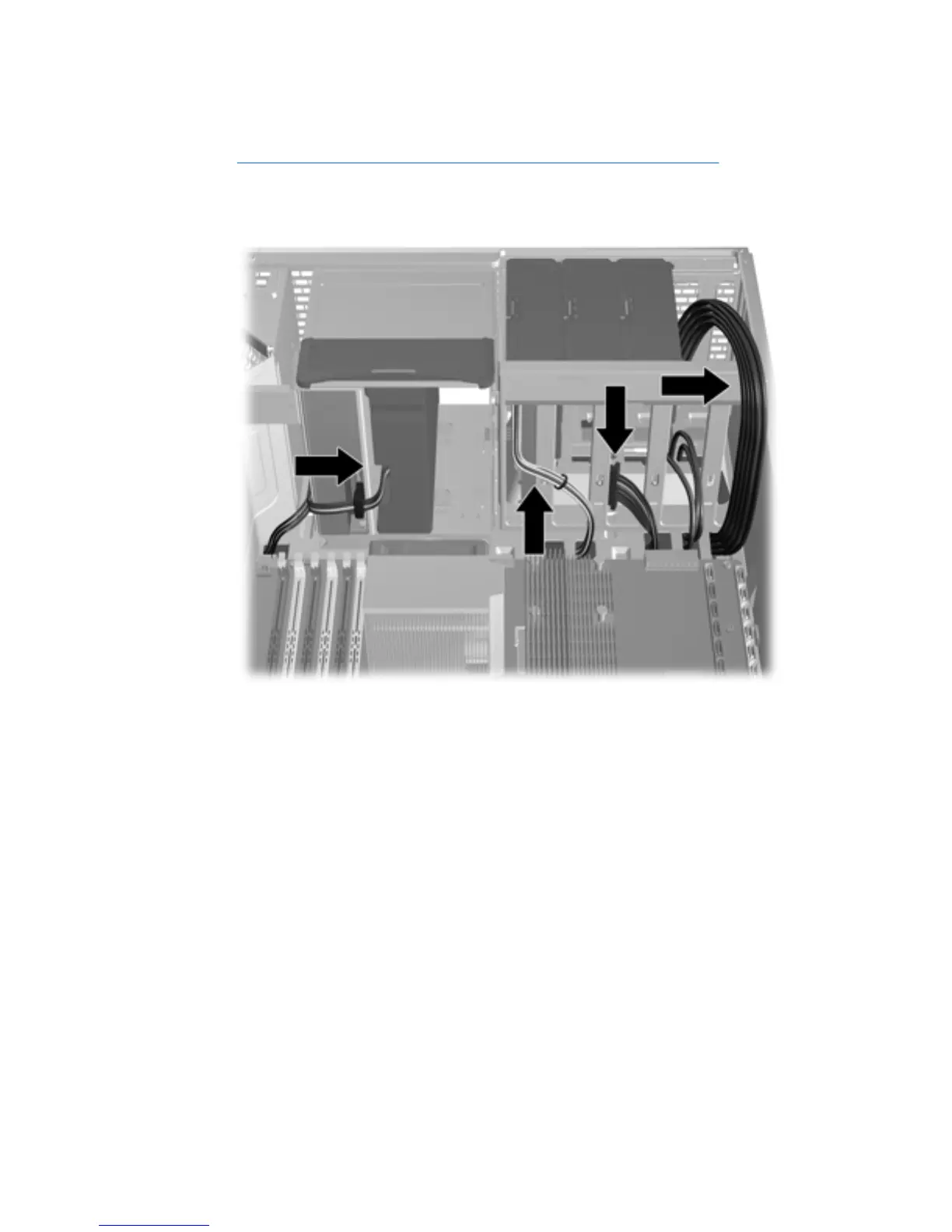

The following figure presents an example of these steps.
ENWW
Removing and installing components
207
