HP Z800

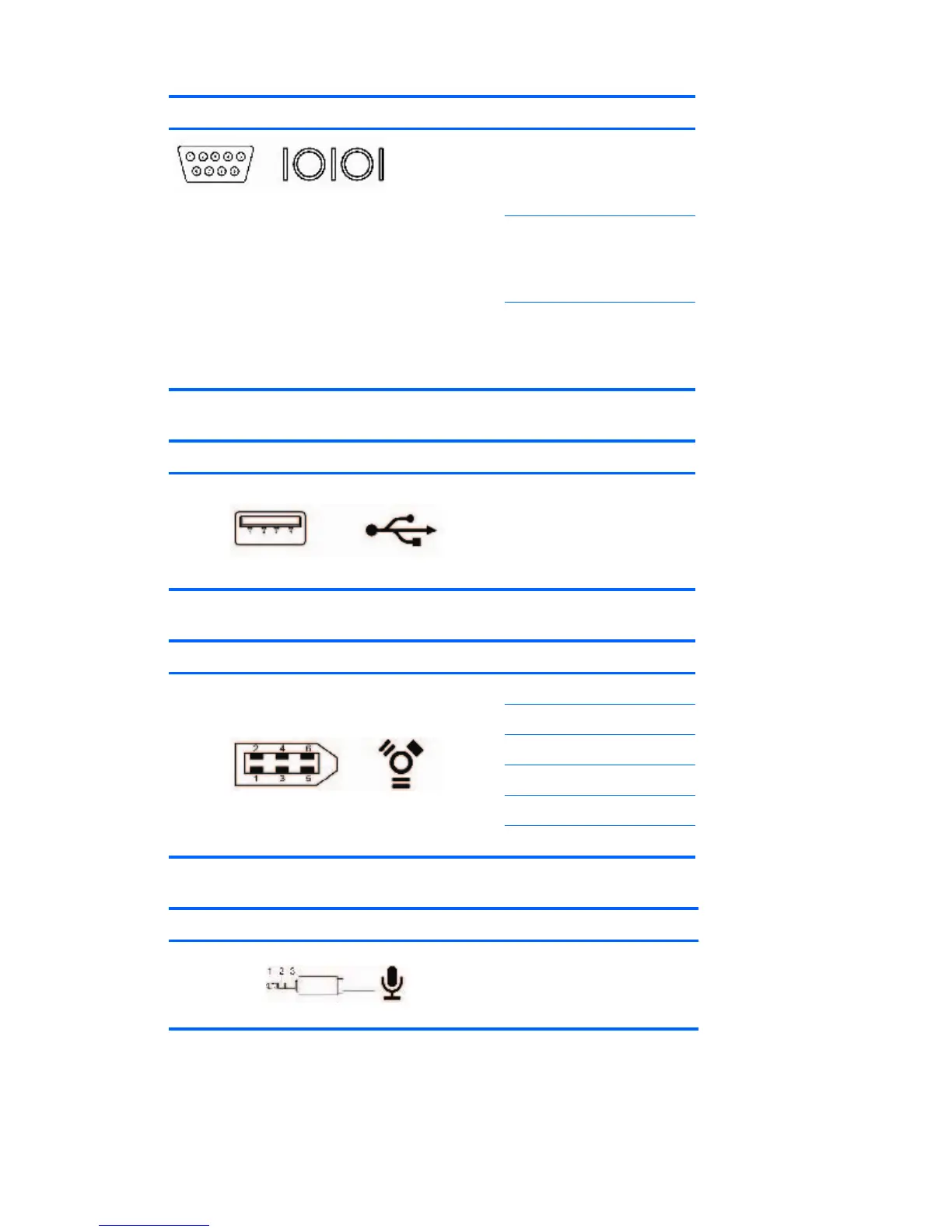

Workstation serial Pin Signal
1
2
3
Carrier Detect
Receive Data
Transmit Data
4
5
6
Data Terminal Ready
Signal Ground
Data Set Ready
7
8
9
Request to Send
Clear to Send
Ring Indicator
Workstation USB Pin Signal
1
2
3
4
+5 VDC
- Data
+ Data
Ground
Workstation IEEE-1394a Pin Signal
1Power
2GND
3 TPB-
4 TPB+
5TPA-
6 TPA+
Microphone cable (1/8 inch) Pin Signal
1 (Tip)
2 (Ring)
3 (Shield)
Audio
Power
Ground
ENWW 271
