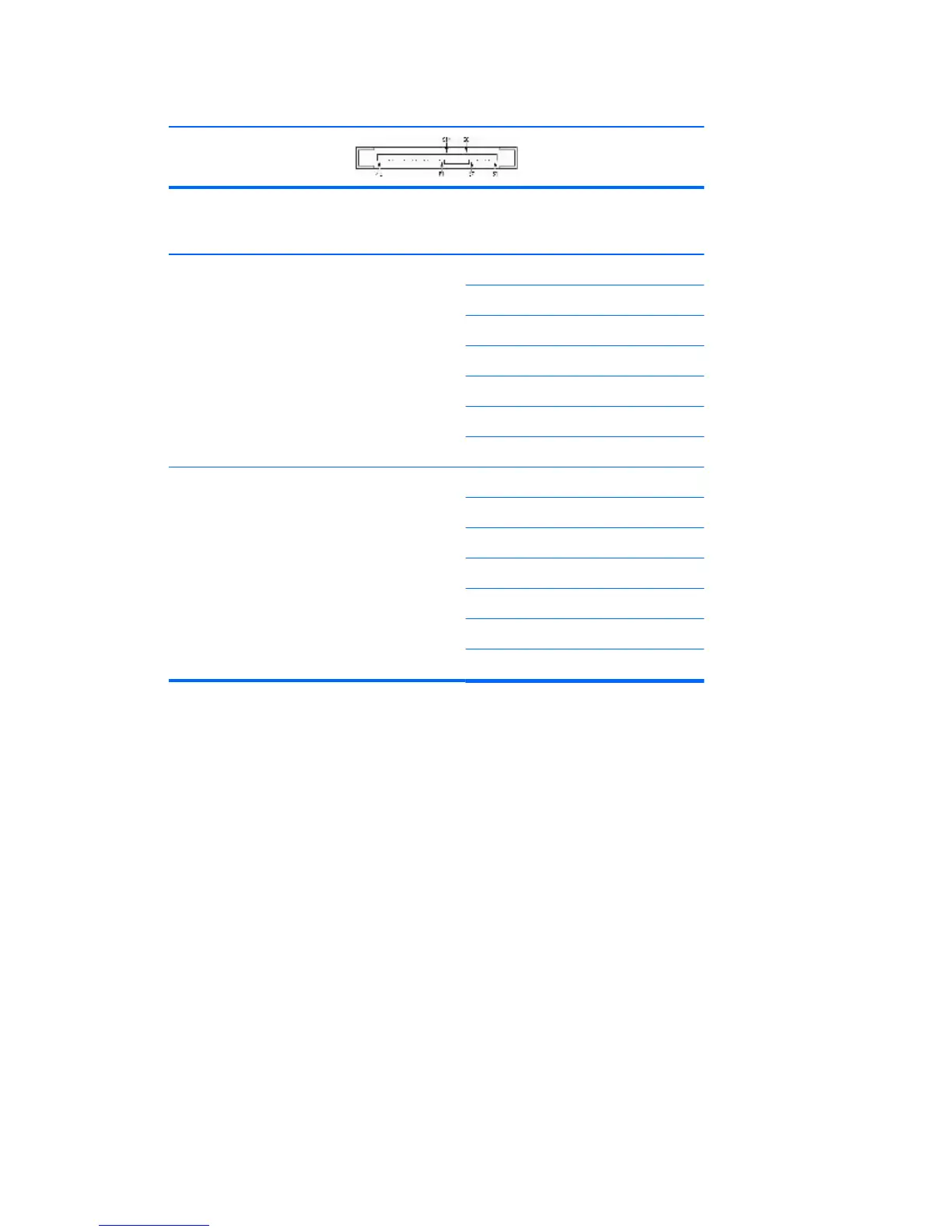

SAS drive
Segment Pin Backplane
receptacle
Plug and
cable
receptacles
Primary signal segment S1 SIGNAL GROUND
S2 TP+ RP+
S3 TP- RP-
S4 SIGNAL GROUND
S5 RP- TP-
S6 RP+ TP+
S7 SIGNAL GROUND
Secondary signal segment S8 SIGNAL GROUND
S9 TS+ RS+
S10 TS- RS-
S11 SIGNAL GROUND
S12 RS- TS-
S13 RS+ TS+
S14 SIGNAL GROUND
ENWW 273
