Installing the switch
CAUTION:
Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the
chassis, contact HPE for permission. Otherwise, HPE shall not be liable for any consequence.

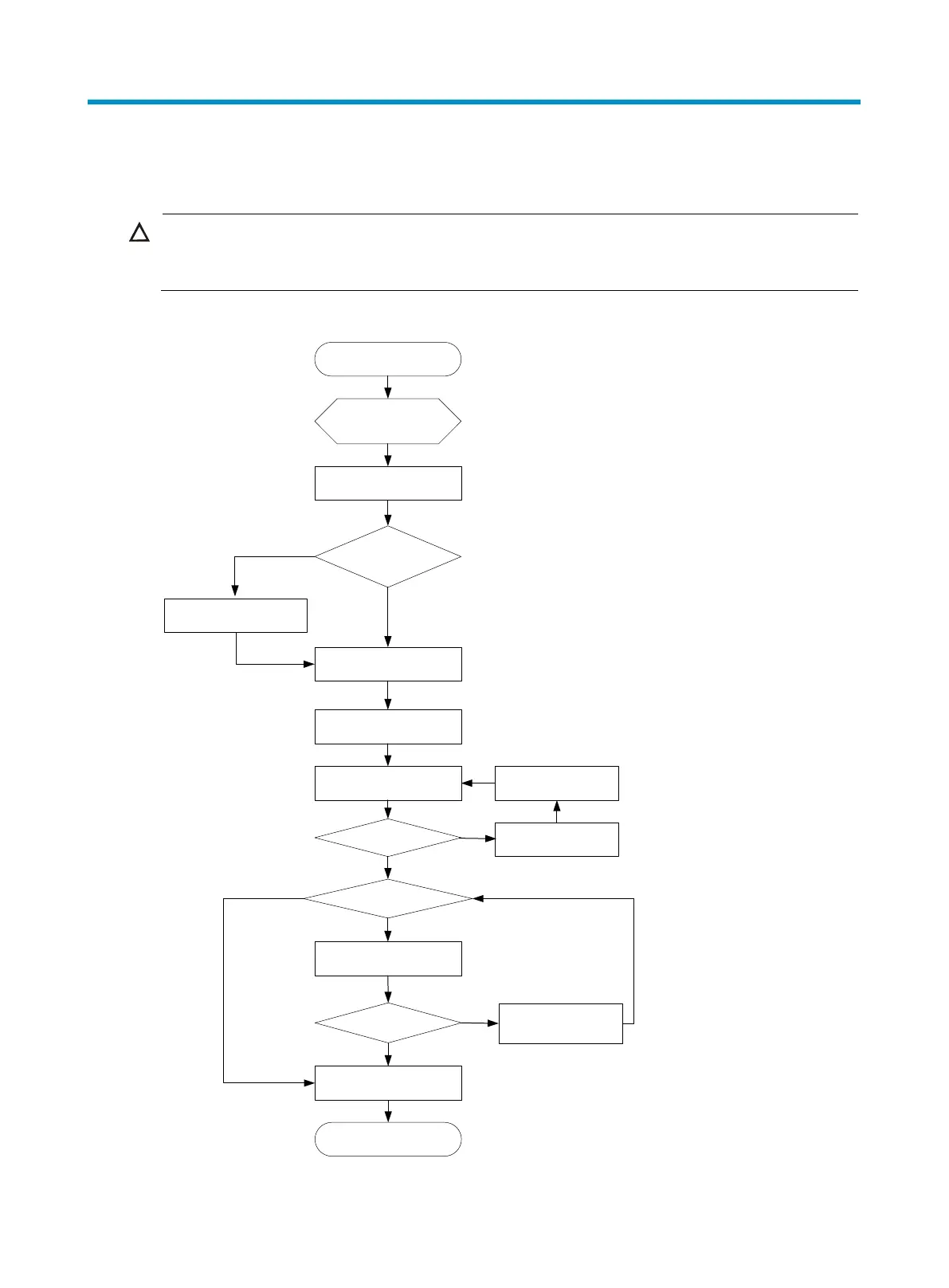

Figure 1 Hardware installation flow
Ground the switch
Install the switch
Start
Connect power cords
Verify the installation
Turn on the circuit breaker
Select and install power
supplies
Hot-swap power
supplies?
Yes
No
Operating correctly?
Turn off the circuit
breaker
Troubleshoot the switch
No
Yes
Hot-swap cards?
Install interface cards
Yes
Troubleshoot the switch
Yes
No
End
No
Operating correctly?
Install transceiver modules
and cables

HPE 5510 HI Series Specifications

General

Input Voltage	100-240 VAC
Operating Temperature	0°C to 45°C
Uplinks	4x 10G SFP+
Layer Support	Layer 3
Stacking	Up to 9 switches
Routing Protocol	OSPF, BGP, RIP
VLANs	4094
Operating Humidity	10% to 90% (non-condensing)
Switching Capacity	Up to 336 Gbps
Ports	24 or 48 x 10/100/1000 ports, plus optional 10GbE uplinks
PoE Support	IEEE 802.3af PoE and IEEE 802.3at PoE+ (on PoE models)
Dimensions	440 x 430 x 44 mm
