24

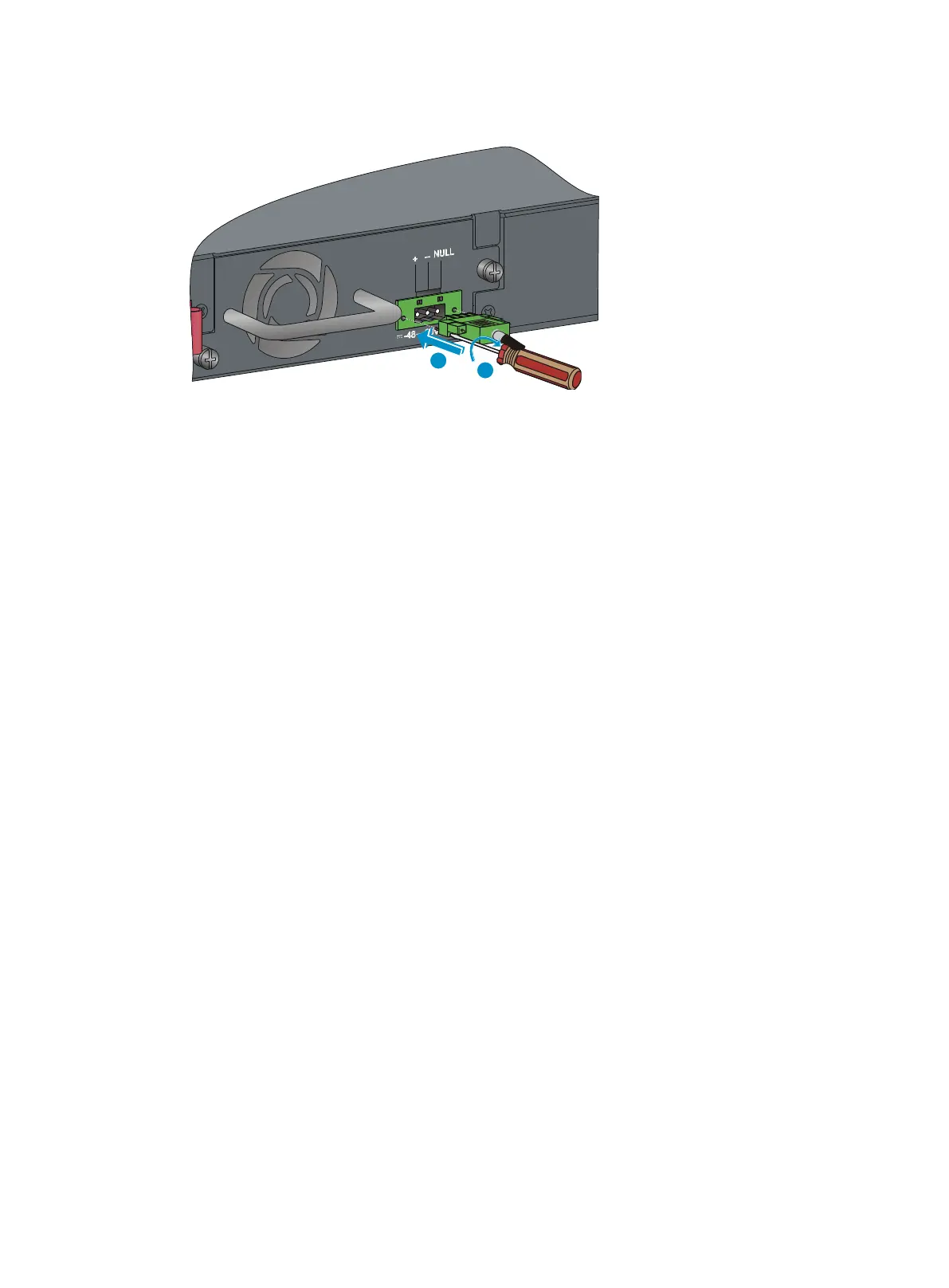

Figure 28 Connecting the PSR150-D1 power supply
Connecting the PSR720-56A/PSR1110-56A/PSR150-A1
power supply
The procedure is similar for connecting a PSR720-56A, PSR1110-56A, or PSR150-A1 power supply. The
following uses the PSR720-56A power supply as an example.
To connect the PSR720-56A power supply:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is reliably grounded.
2. Plug the female connector end of the AC power cord into the AC input socket of the power supply
(see callout 1 in Figure 29).
3. Use a cable tie to secure the power cord to the handle of the power supply (see callout 2 and
callout 3 in Figure 29).
4. Connect the other end of the AC power cord to an AC power outlet.
