HPE Nimble Storage HF Series User Manual

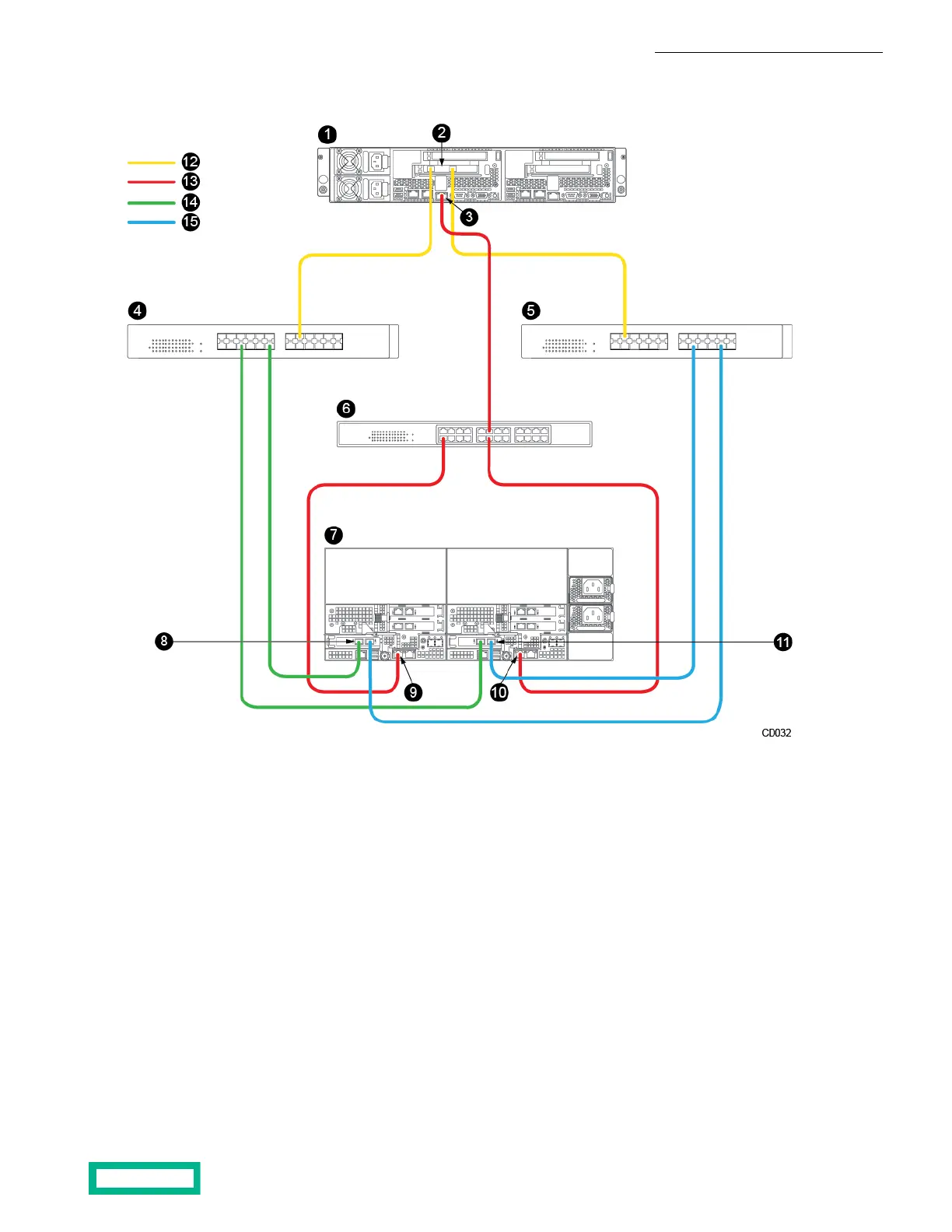

Figure 17: An example of network connections for dual fabric Fibre Channel
91 Management port eth0a on controller AHost/server
2 10Fibre Channel HBA Management port eth0a on controller B
113 Data port fc1a on controller BManagement port
4 12Fibre Channel switch 1 Host data port connections
135 Management port connectionsFibre Channel switch 2
6 14Ethernet switch Data fabric 1 connections
157 Data fabric 2 connectionsFibre Channel array
8 Data port fc1b on controller A
Connect the Power to the Array
Before you begin
The storage array must be installed in a rack or enclosure and the array must be connected to a network.
Install the HPE Storage Array 32
Documentation Feedback: doc-feedback-hpe-storage@hpe.com
